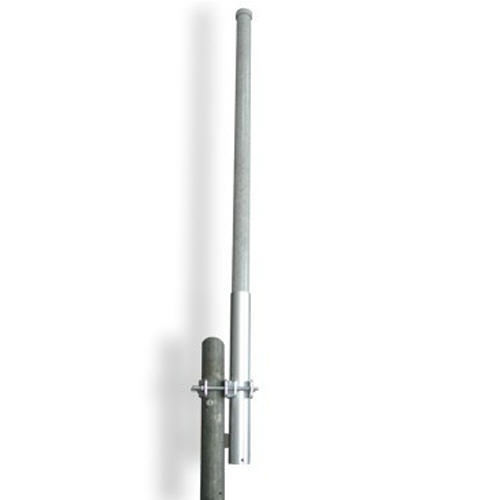

Model:GW-OFA
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Endow them with high rot and wind resistibility;
Reduce high-frequency core loss, high efficiency, directivity homogeneity, high power endurance.
Wi-Fi system
| Frequency range | 806-960MHz |
| VSWR | <1.5 |
| Input impendence | 50Ω |
| Gain | 6dBi/ 8dBi/ 10dBi |
| Polarization type | Vertical polarization |
| Max power | 100W |
| Connector type | N female or customized |
| Weight | 1.5kg/ 2kg/ 3kg |
| Dimension | 1.2m/ 1.7m/ 3.2m |
| Rated Wind Velocity | 60-m/s |
| Mounting Kits | U bolts |
| Temperature | -40ºC~+55ºC |
