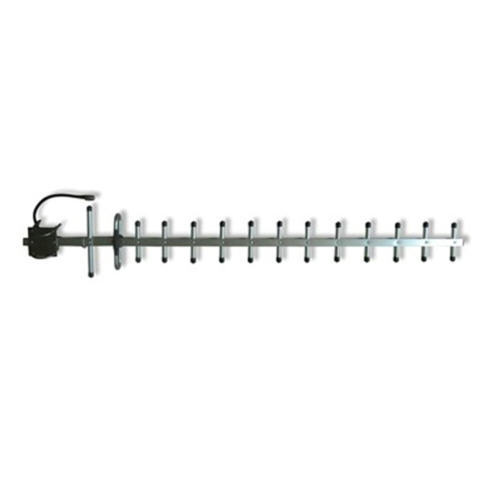

824-960MHz 14dBi Yagi Antenna (GW-BMD806-960-14)

Item No.: 00189
Description Specifications
Description

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation

Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio

Specifications
ELECTRICAL
Model GW-BMD806-960-14
Frequency Range 806-960-MHz
Gain 14-dBi
Beam width H: 20- °E: 20- °
F/B ratio ≥18-dB
VSWR ≤1.5
Polarization Horizontal or Vertical
Max power 100 -W
Nominal Impedance 50 -Ω


MECHANICAL
Connector­­­ N female or customized
Dimension 1.2-M
Weight 1-KG
Element 14
Material Aluminum Alloy
Rated Wind Velocity 60-m/s
Mounting Kits U bolts
