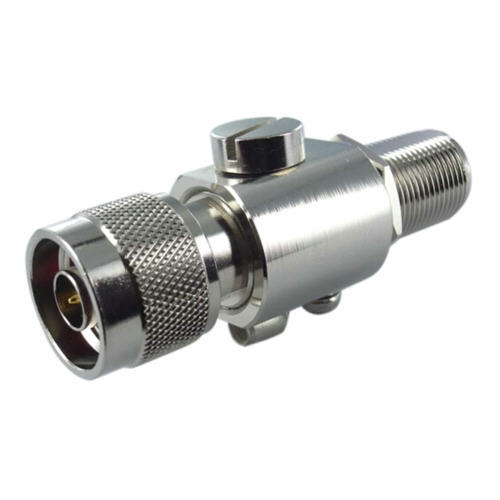

Antenna Surge Protector/Surge Arrester /Surge Suppressor (GW-NSA-1)

Item No.: 00177
Description Specifications
Description

Feature of Product:
1. Heavy discharge current, No feeding current foe conventional type.
2. Low insertion loss, Small VSWR.
3. Low residual voltage.
4. Simple structure, easy installation and mainenance.

Specifications
Specifications
FREQUENCY RANGE 0~6 GHz
V.S.W.R 1.3 MAX
INSERTION LOSS 0.5 dBi MAX
IMPEDANCE 50 Ω
GAS TUBE DC 230 V ±20 %
GAS TUBE IMPULSE BREAKDOWN VOLTAGE ≤700 V
GAS TUBE INSULATION RESISTANCE ≥10000 MΩ
MAX WITHSTAND CURRENT 5 KV
RE POWER RATING 15 W
