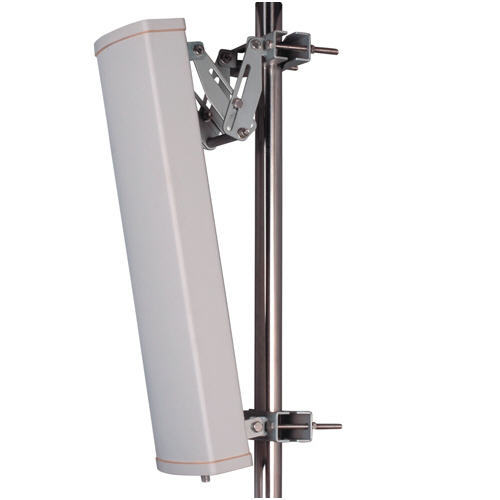

Product Feature:
1. Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
Applications:
1. Mobile Communication Network Optimization and Indoor distribution system
2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio
| ELECTRICAL | |||||||
| FrequencyRange | 824-896-MHz | ||||||
| Bandwidth | 72-MHz | ||||||
| Gain | 12-dBi | 15-dBi | 16-dBi | 17-dBi | 18-dBi | ||
| Beamwidth | H:65° E:18° | H:65° E:14° | H:65° E:12° | H:65° E:10.5° | H:65°E:7.5° | ||
| Intermodulation IM3 | ≤-107-dBm(2W) | ||||||
| F/B ratio | ≥20-dB | ||||||
| VSWR | ≤1.5 | ||||||
| Polarization | Vertical | ||||||
| Max power | 100 -W | ||||||
| Nominal Impedance | 50 -Ω | ||||||
| MECHANICAL | ||||||||
| Connector | N female or customized | |||||||
| Connector Position | Bottom | |||||||
| Radome Material | UPVC | |||||||
| Radome Color | Grey | |||||||
| Dimension | 607x285x135-mm | 1270x285x135-mm | 1600x285x135-mm | 1890x285x135-mm | 2530x285x135-mm | |||
| Weight | 4.5-KG | 12-KG | 15-KG | 17-KG | 20-KG | |||
| Rated Wind Velocity | 60-m/s | |||||||
