Functional Integration for Advanced RF Systems
The Customized 50W 6500-6800-7100MHz High Frequency RF Power Amplifier Module is engineered to meet the demands of professional engineers and system integrators requiring consistent high-frequency signal amplification. Optimized for devices operating within the 6.5–7.1 GHz spectrum, this amplifier suits test benches, prototype development, and embedded communications platforms. Its compact footprint and standardized SMA connectors facilitate seamless integration into existing RF signal chains. Target users include research laboratories, telecom hardware developers, and testing facilities focused on reliability and precision amplification under variable environmental conditions.

Technical Precision and Robust Specifications
This module delivers an approximate 47 dBm (around 50W) output with an accuracy of ±1.5 dB across the 6500–7100 MHz band, fueled by a stable +24–28 V DC supply. Key measurements include a gain of 47 ±1.0 dB, input VSWR ≤1.35, and output VSWR ≤1.3, highlighting minimized reflection and enhanced signal integrity. It operates efficiently within a temperature range of -40°C to +70°C, suitable for harsh industrial or lab environments. The compact dimensions (132 × 53 × 17 mm) and SMA connectors support modular design and simplified maintenance, aligning with ISO9001-certified manufacturing standards to ensure quality and repeatability.

Industrial Applications Enhancing RF Signal Chains
Widely applicable in fields such as microwave communications, drone detection systems, and high-frequency transmission testing, this Customized 50W 6500-6800-7100MHz High Frequency RF Power Amplifier Module fills critical roles in signal boosting and calibration. It supports the development and optimization of communication links in defense, aerospace, and wireless coverage testing, where precise frequency handling and power output are mandatory. The module’s stable performance under varying operational conditions makes it indispensable for scalable RF system deployments, ensuring engineers can rely on consistent amplification in both laboratory and field test scenarios.


Product Advantages

Structural and Modular Design Benefits
The design of the Customized 50W 6500-6800-7100MHz High Frequency RF Power Amplifier Module emphasizes compactness and modular adaptability, facilitating straightforward integration with other RF front-end components. Its standardized SMA connectors and consistent power supply requirements reduce complexity during system assembly. The mechanical layout optimizes heat dissipation despite the high power output, while maintaining ruggedness for deployment in challenging environments. This design philosophy supports scalable configurations in both prototype development and commercial RF infrastructure, enhancing maintainability and engineering flexibility.

Optimized Performance and Operational Reliability
Performance-wise, the module delivers stable gain and power output with a low ripple of ≤2.5 dB, ensuring minimal signal distortion throughout the specified frequency band. Its operational voltage and thermal ranges allow continuous, reliable operation in diverse conditions, reducing downtime. Users benefit from sharp gain linearity and tight VSWR specifications that enhance overall system efficiency. Additionally, the module’s ease of integration into RF chains accelerates deployment cycles and aligns with engineering workflows requiring repeatable, high-fidelity amplification.

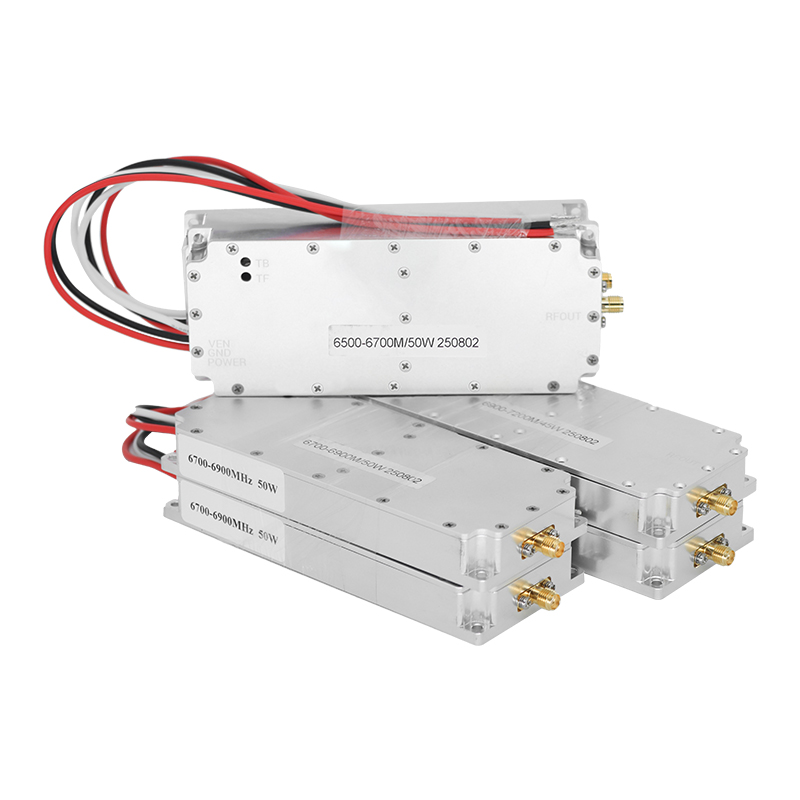

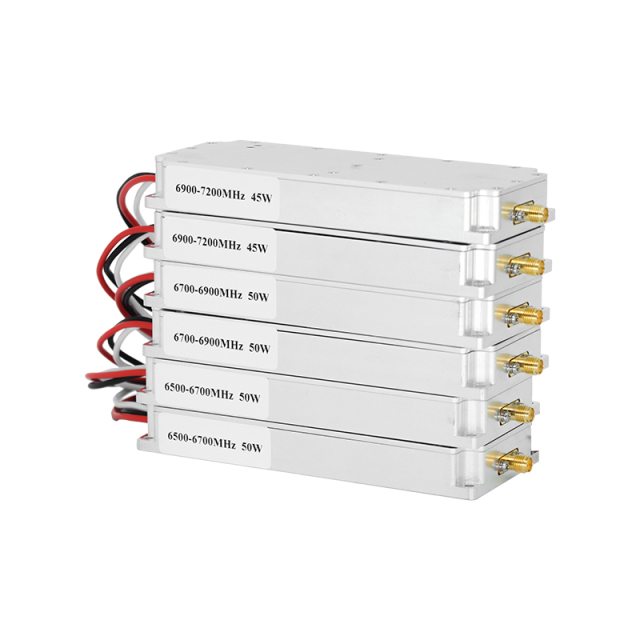

Customized 50W 6500-6800-7100MHz High Frequency RF Power Amplifier Module
