Functional Scope and Targeted Security Applications
Designed primarily for security professionals and system integrators, the Drone Jammer Frequency 6900-7200MHz 50W GaN Anti Drone Module addresses the challenge of unauthorized drone incursions in controlled airspaces. It targets the RF control and communication links of drones operating within the 6900-7200 MHz frequency band, enabling facility managers, event coordinators, and security agencies to enforce secure zones effectively. The compact module can be integrated into existing RF jamming platforms or deployed as a standalone solution, meeting the demands of perimeter protection, VIP security, and sensitive site defense, where rapid identification and suppression of drone threats are critical.
Technical Performance and Engineering Specifications
The module features a high-efficiency Gallium Nitride (GaN) semiconductor design that delivers up to 50W output power (typical 47 dBm ±1.5 dBm) across a wide 6900-7200MHz frequency range. Its bandwidth capabilities of 200 to 300 MHz and fast response delay time below 50 nanoseconds ensure real-time disruption of drone communication signals. With a compact form factor measuring 132 × 53 × 17 mm and power input requirements of +24-28V DC at 3.6A, the device supports diverse operational environments. Its temperature tolerance from -40°C to +70°C extends usability in harsh climate conditions, making it suitable for field deployment where robustness and reliability are essential.
Industry Use Cases and Operational Value
This anti-drone module integrates seamlessly into security infrastructures for industrial sites, public venues, and emergency response settings. It is particularly valuable for protecting critical infrastructure such as power plants and data centers, as well as managing crowd safety in stadiums by mitigating drone interference. Law enforcement and military units benefit from its agile deployment capabilities during tactical operations requiring temporary but effective drone denial. The module’s compatibility with portable and fixed jamming systems allows for strategic airspace control, reducing operational risks associated with rogue drones and supporting compliance with regulatory frameworks regarding unmanned aerial system management.
Product Advantages
Structural and Integration Design Benefits
The Drone Jammer Frequency 6900-7200MHz 50W GaN Anti Drone Module incorporates a modular design centering on a compact 132 × 53 × 17 mm enclosure, enabling flexible integration into diverse jamming platforms through its SMA connector interface. The +24-28V DC power supply input accommodates a broad range of deployment settings from portable units to fixed installations. The use of GaN technology enhances the device’s power efficiency and thermal management, supporting extended operation without additional cooling mechanisms. Combined with its rugged construction and operating temperature range down to -40°C, the module’s design ensures consistent electrical performance and mechanical reliability necessary for professional security environments.
Performance Efficiency and Operational Advantages
This module delivers a stable 50W RF output with minimal distortion, high gain, and controlled ripple, enabling precise drone signal disruption. Its responsive delay of less than 50 ns guarantees immediate interference once a threat is detected. The advanced GaN-based amplifier contributes to energy-efficient operation, minimizing power consumption relative to output power. The compact form factor and lightweight build facilitate rapid deployment and integration into existing surveillance or counter-drone systems. Consequently, operators benefit from reliable performance with reduced downtime, enhancing security protocols with minimal logistical complexity while ensuring compliance with frequency regulations.

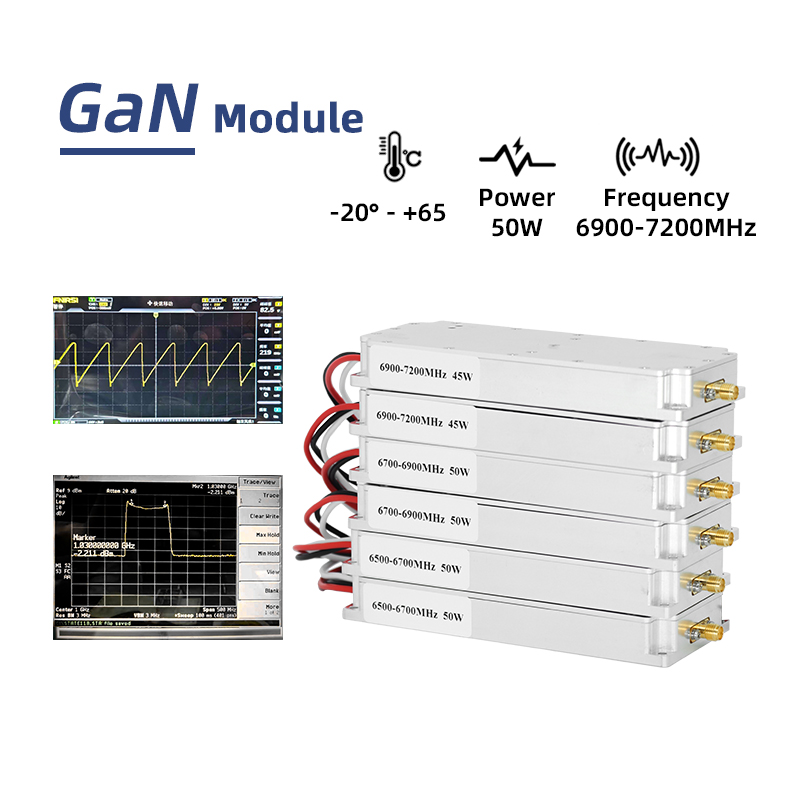

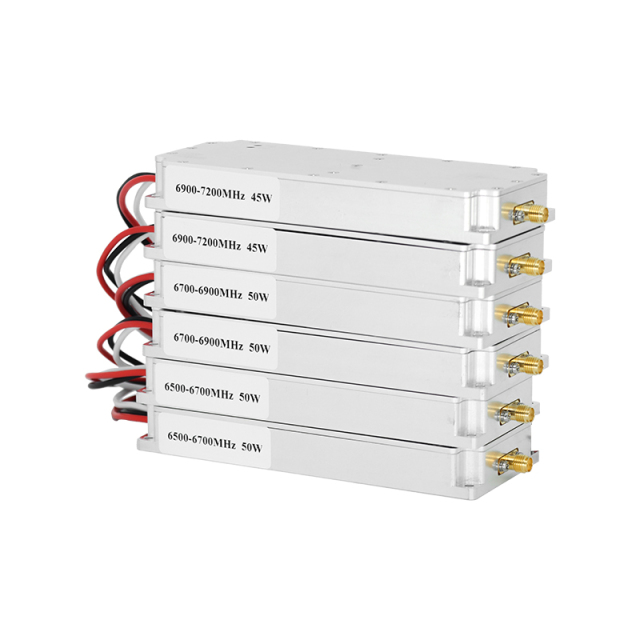

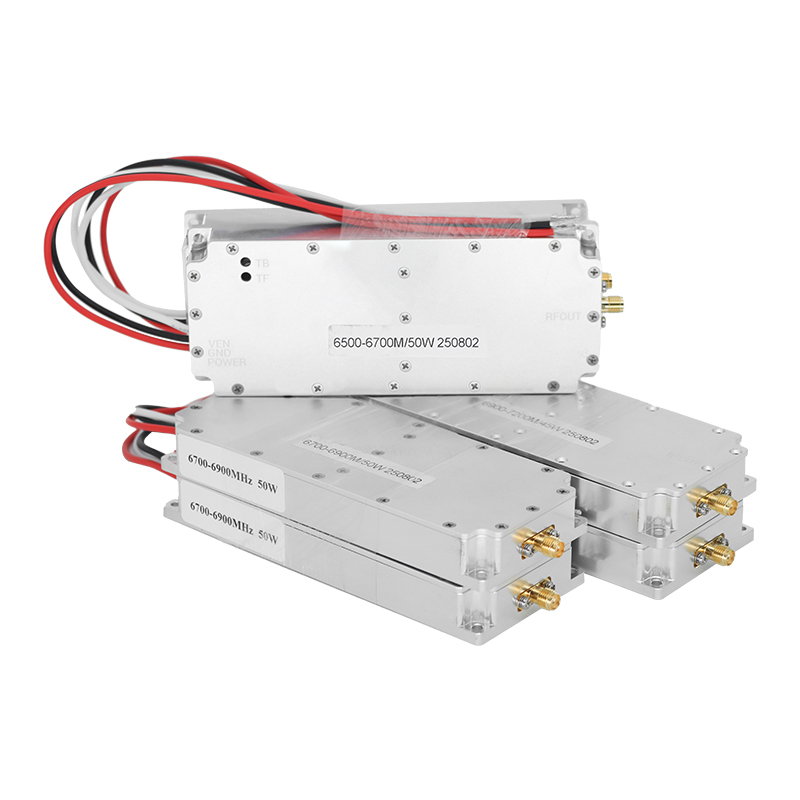

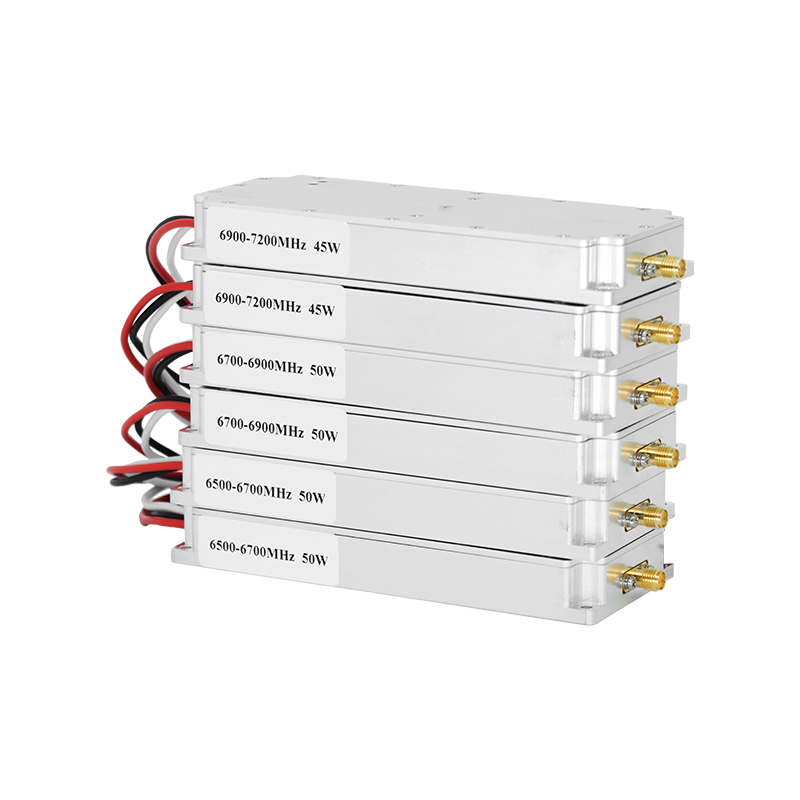

Drone Jammer Frequency 6900-7200MHz 50W GaN Anti Drone Module
|
Test Items |
Specs |
|
Frequency Range (MHz) |
6900-7200MHz |
|
Bandwidth(MHz) |
200/300 |
|
Max Output power(dBm) |
47dBm±1.5dBm |
|
Delay time（ns） |
≤50 |
|
Gain(dB) |
47±1.0 |
|
Ripple(dB) |
≤2.5dB |
|
Input VSWR |
≤1.35 |
|
Output VSWR |
≤1.3 |
|
Power Supply |
＋24-28V DC @50W/3.6A |
|
Connector Type |
SMA |
|
Working Temperature |
-40～+70℃ |
|
Size(mm) |
132×53×17 |
