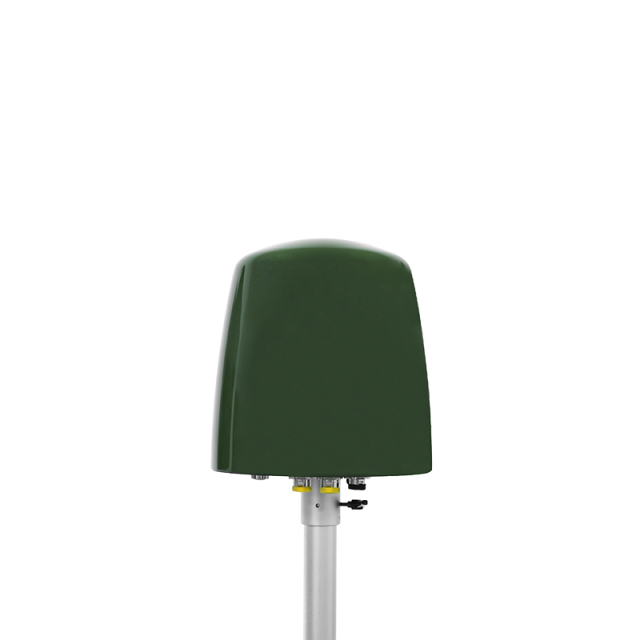

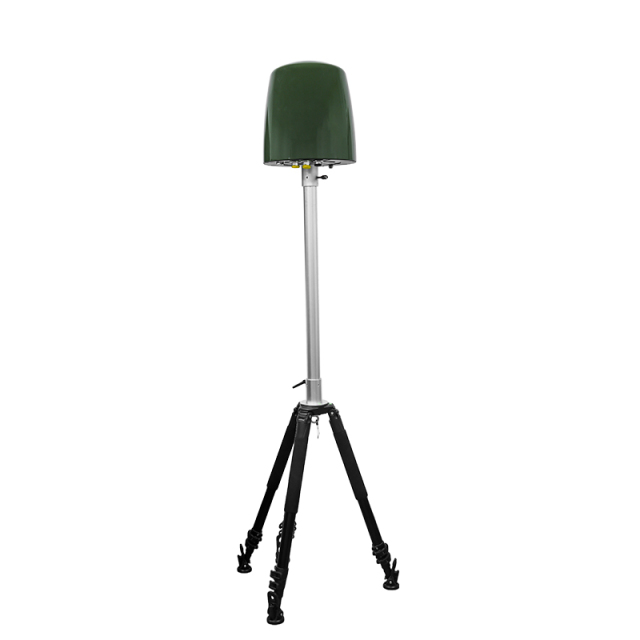

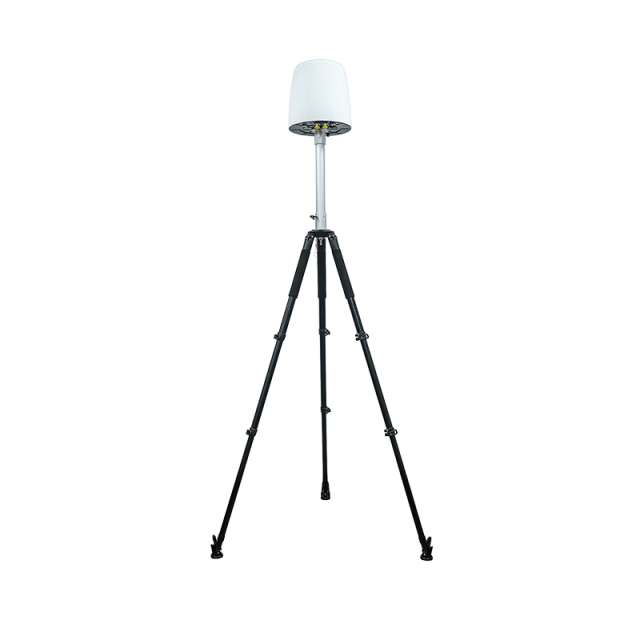

Fpv Drone Detector Quickly Response Detection Range 1-3km Long Distance 300-6200MHz Fixed Drone Detector
No.GW-T1C
Can work with drone jammer , carry out automatic Jamming. The UAV detector adopts a low-power design and highly integrated design, and is capable of detecting mainstream rotary wing drones such as DJI and AUTEL that use OFDM high-definition image transmission, as well as various DIY crossings that use analog image transmission signals.
1.Summary The UAV detector adopts a low-power design and highly integrated design, and is capable of detecting mainstream rotary wing drones such as DJI and AUTEL that use OFDM high-definition image transmission, as well as various DIY crossings that use analog image transmission signals. The device adopts dual antennas and multi channel simultaneous scanning, which has the characteristics of fast detectionspeed, high detection sensitivity, long detection distance, low false alarm rate strong scalability, and easy use.
2.Mainfunctions PassiveDetection :Able to identify UAV such as DJI and AUTEL that use OFDM high-definition image transmission; Can detect FPV using analog image transmission within 300MHz-6200MHz. Sound and light alarm: headphone sound alarm, external sound and light alarm. Log recording: It has alarm log recording and can export alarm logs through USB interface. Headphone function: capable of obtaining alarm sound through headphones. Firmwareupgrade function: Upgrade firmware through USB interface. Datatransmissionfunction:Real time alarm data of the drone can be obtained through the USB port. Multi language switching: supports English and Russian Language; Work statusdisplay:language, battery level Workingmodes: default mode, key frequency band scanning mode, user-defined feature library scanning mode. Customdetection: Users can modify, delete, or add detection drone feature libraries through the USB interface. 3. Features 1.Drone/Mini-Micro UAV and Remote Controller detection and identification supported by Threat Library. 2.Fixed site configuration for the protection of critical facilities, borders, private and governmentfacilities, airports, etc. 3.Ability to work at night, in foggy and bad weather conditions with its RF detection technology 4. Easy to use with user friendly interface 5. Real-time spectrum monitoring of all relevant drone frequency bands 6. 360° detection with omni-directional antenna 7. 7/24 operation from the mains AC supply 8.Ability to simultaneously detect multiple threats (swarms) from different sectors controlled atdifferent frequencies MlL-STD-810 compliant The detection range of system is up to 1500 (a thousand) meters. 9.Detection range may varyaccording to level of signals to be detected and existence of obstacles in the environment.
4.Technicalindicators Receivingfrequencyrange: 300MHz-6200MHz Identification type:OFDM high-definition image transmission signal, FPV FM analog image transmission Detectiondistance: 800 - 1.5km Detectionsensitivity: better than -96dBm Alarm detectionmethods: headphones, sound and light Logrecording: Supports no less than 500 alarm records Upgrade and data export interface: mirco USB Structuraldimensions:H*W 330mm × 325mm Workingweight:≤ 5.5kg 3. Drone monitor System.
