Functional Deployment for Counter-Drone Security Systems
The GaN 50W 6500-6700 MHz Drone Jammer Anti FPV UAV RF Module is engineered for integration into sophisticated counter-drone and electronic warfare setups. Targeted at system integrators, defense contractors, and security solution providers, this module facilitates interference with FPV and UAV communications specifically within the 6500-6700 MHz frequency range. Its design addresses real-world operational demands for interoperability and robustness, enabling deployment in mobile and fixed anti-drone platforms. This solution assists operators in managing drone threats by disrupting control links while maintaining compliance with electromagnetic spectrum regulations applicable to sensitive security environments.
Advanced Technical Performance and Precise Specifications

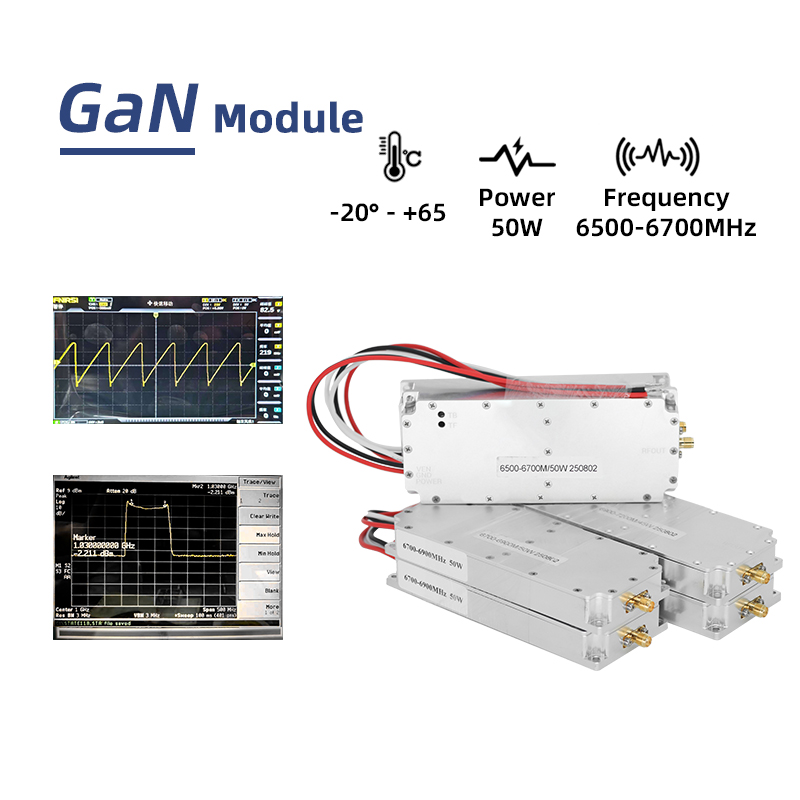

Built on cutting-edge GaN technology, the module achieves sustained 47 dBm output power with output ripple limited to ≤2.5 dB, ensuring signal integrity during jamming operations. It operates within a selectable 200 or 300 MHz bandwidth at 6500–6700 MHz and supports input voltages from +24 to +28 V DC, making it compatible with standard telecom power supplies. Thermal management enables use across a broad temperature range (-40 to +70°C), enhancing field reliability. Compact dimensions (132 × 53 × 17 mm) combined with SMA connectivity simplify integration into existing RF chains and counter-drone systems. The module’s low delay time (≤50 ns) facilitates precise timing control critical for synchronized electronic countermeasure functions.
Applications in Security, Testing, and Electronic Warfare
This module is suited for industries requiring reliable FPV/UAV signal suppression, such as government defense agencies, event security services, and RF test laboratories. It supports drone jammer hardware design validation, enabling testing of UAV interference scenarios and operator training. In mobile counter-drone platforms, it serves as a key component for real-time threat neutralization, while in controlled environments, it permits performance benchmarking under varied operational conditions. Its compact footprint and ruggedized construction allow flexible deployment during security drills, public safety operations, and research and development activities focused on airborne threat mitigation.
Product Advantages
Robust Design Enabling Modular Integration
The GaN 50W 6500-6700 MHz Drone Jammer Anti FPV UAV RF Module is designed with system integration in mind. Its GaN amplifier technology optimizes power efficiency while minimizing thermal stress within a compact housing. The module features a standardized SMA connector for seamless RF interfacing, facilitating quick integration into larger counter-UAV frameworks. Its wide operating temperature range ensures operational stability in challenging environments. The design incorporates low VSWR input and output stages (≤1.35 and ≤1.3 respectively), enhancing RF chain matching and overall system reliability while reducing signal reflection losses critical for high-power applications.
High-Performance Operation and Operational Efficiency
This RF module delivers consistent 50W output power with minimal ripple, ensuring high jamming effectiveness against FPV/UAV signals in the 6.5 GHz range. The device’s rapid response time (≤50 ns delay) supports real-time signal disruption with precise timing controls. Its compact form factor coupled with low power consumption (+24 to +28 V at 3.6A) translates into enhanced usability for mobile or remotely deployed solutions. Users benefit from straightforward integration and stable operation across significant temperature variations, promoting reliability in high-demand security or test scenarios. This module thus offers an efficient, predictable response profile valuable to RF engineers and security professionals.

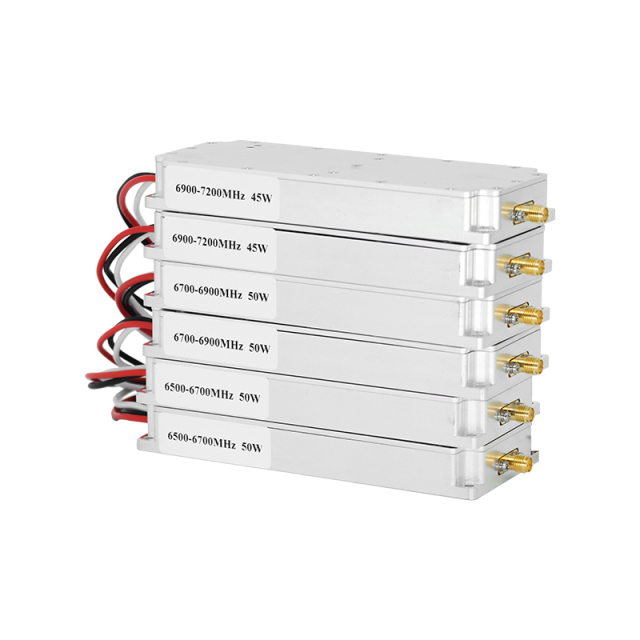

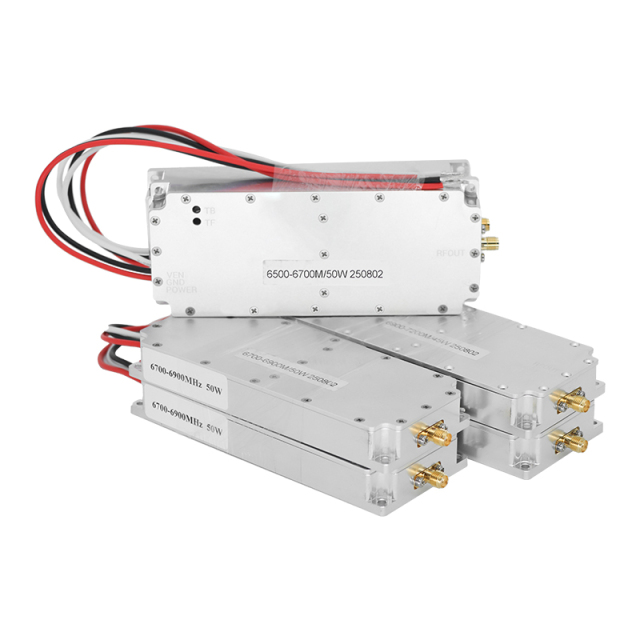

GaN 50W 6500-6700 MHz Drone Jammer Anti FPV UAV RF Module
|
Test Items |
Specs |
|
Frequency Range (MHz) |
6500-6700MHz |
|
Bandwidth(MHz) |
200/300 |
|
Max Output power(dBm) |
47dBm±1.5dBm |
|
Delay time（ns） |
≤50 |
|
Gain(dB) |
47±1.0 |
|
Ripple(dB) |
≤2.5dB |
|
Input VSWR |
≤1.35 |
|
Output VSWR |
≤1.3 |
|
Power Supply |
＋24-28V DC @50W/3.6A |
|
Connector Type |
SMA |
|
Working Temperature |
-40～+70℃ |
|
Size(mm) |
132×53×17 |
