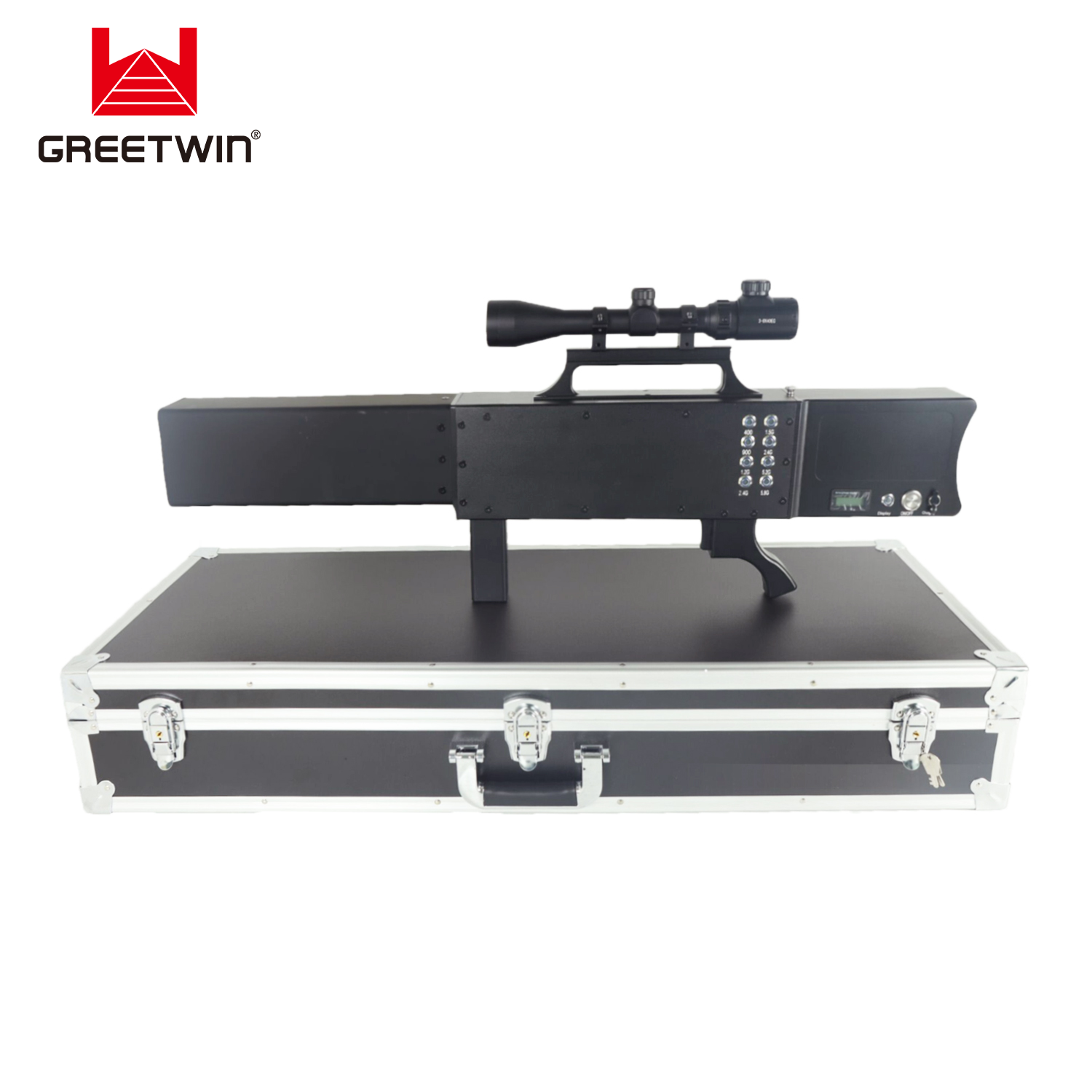

8 Band UAV Counter 433MHz 900MHz WiFi 2.4G 5.2G 5.8G GPSL1 UAV Signal Jammer
Portable light UAV Drone Jammer, Built-in high gain directional antenna, Built-in 8 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (500-1200m) can be comprehensive and stable uninterrupted shielding of the 433MHz,900MHz,GPSL1-L5,WIFI 2.4G/5.2G/5.8G bands in the UAV frequency band.
Applications:
Sensitive Areas
Prisons
Oil Refineries
Military Bases
Protected Areas
Function:
Effective interference with UAV 433Mhz 2400MHz, GPSL1-L5 5800MHz,5200MHz 900MHz.
Parameter
|
Channel |
Working Frequency |
Output power(±1dBm) |
|
|
CH1 |
2.4G |
2400-2500MHz |
46 dBm (40W) |
|
CH2 |
5.2G |
5150-5300MHz |
45 dBm (30W) |
|
CH3 |
5.8G |
5700-5900MHz |
45 dBm (30W) |
|
CH4 |
1.2G |
1150-1300MHz(GPS) |
41 dBm (10W) |
|
CH5 |
1.4G |
1430-1520MHz |
41 dBm (10W) |
|
CH6 |
1.5G |
1570-1620MHZ(GPS) |
45 dBm (30W) |
|
CH7 |
433MHz |
428-438MHz |
41 dBm (10W) |
|
CH8 |
900MHz |
840-960MHz |
41 dBm (10W) |
|
Power supply mode |
Inside battery: 24V, 8.5Ah; |
||
|
Battery working time |
30-40 minutes |
||
|
Working temperature |
-20ºC to +55ºC |
||
|
Power consumption |
340W |
||
|
Weight |
7.3KG, Packing Weight:18KG |
||
|
Size |
830X370X240mm |
||
|
Directional Antenna |
13dBi Gain |
||
|
Total output power |
170W |
||
