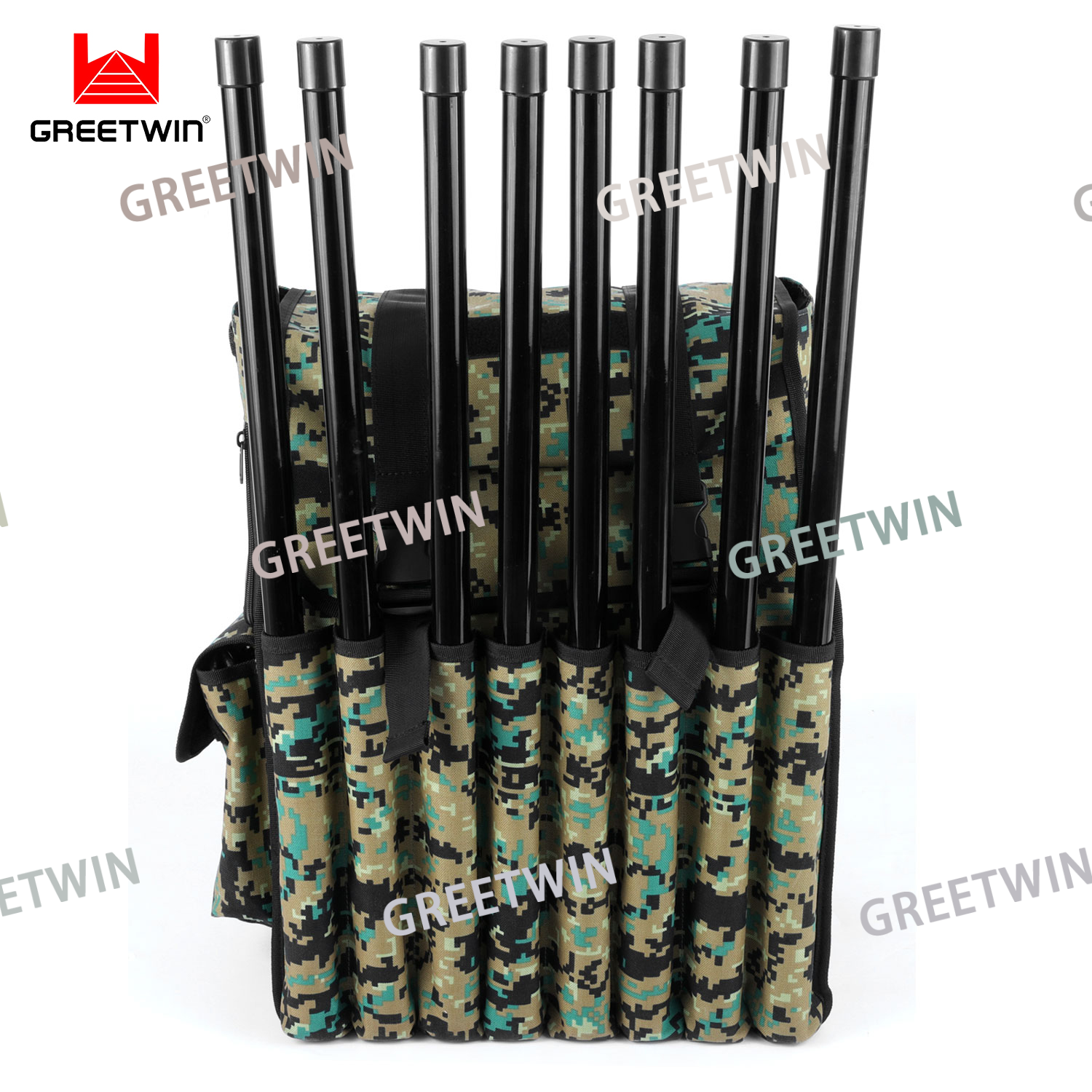

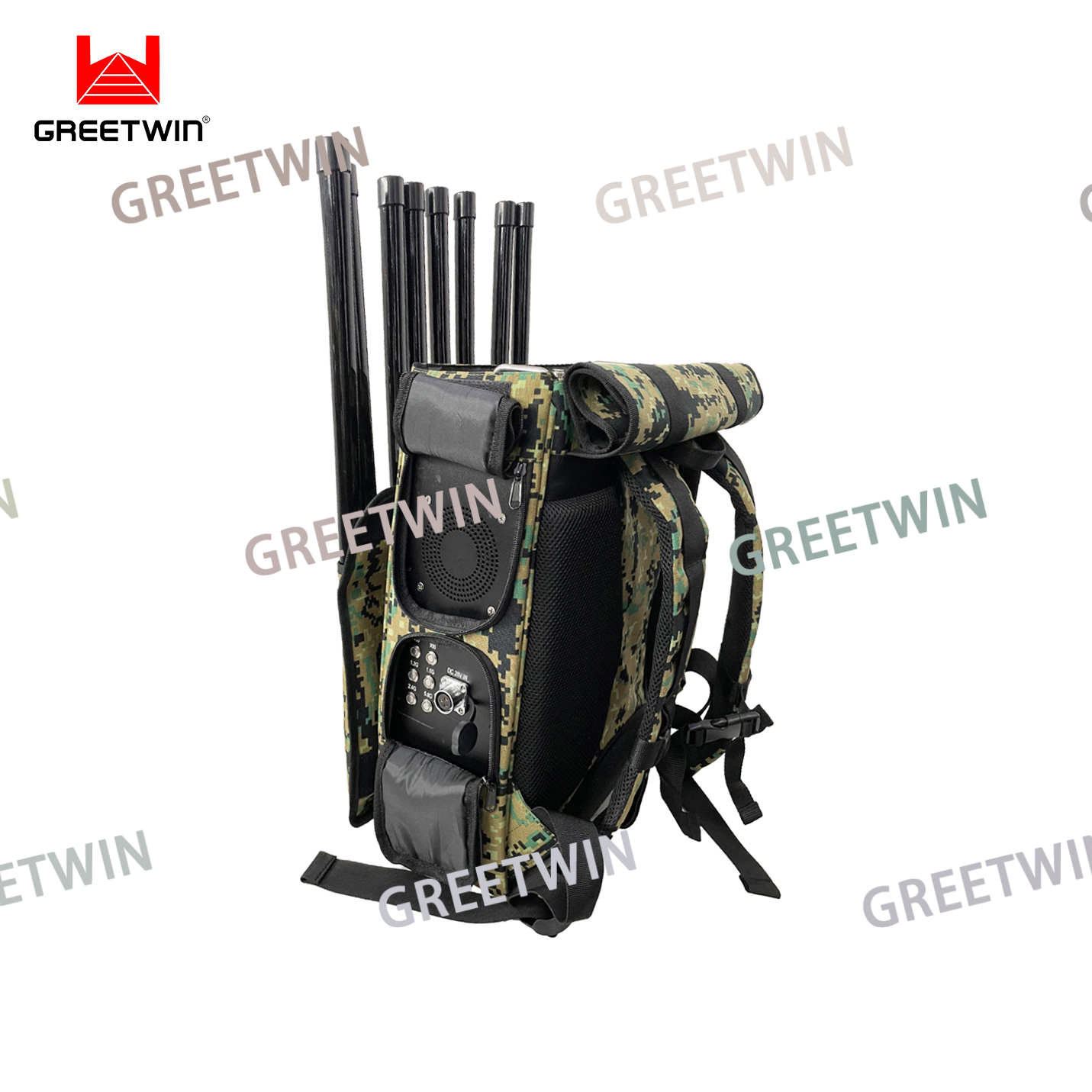

UAV Manpack Defence System Omnidirectional UAV Drone Jammer
Product Parameters
All Parameters:

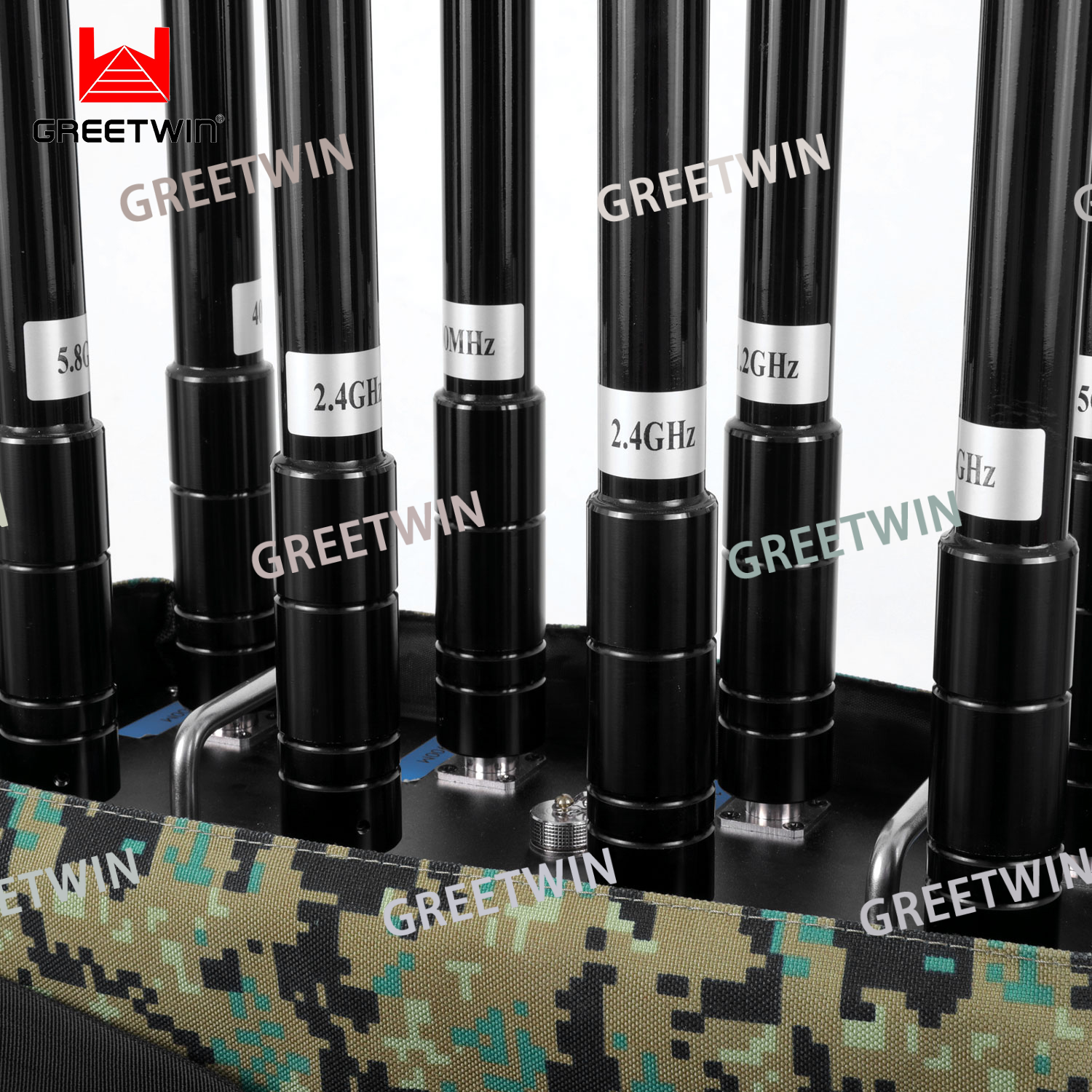

| External Antennas: 8pcs Omnidirectional High Gain (6-8 dBi) antennas, one per frequency band. |
| VSWR - disconnect/ short antenna protection |
| Internal Li-lon battery - Continues amplifying 1.5h / Standby 48 h/ Charging time 5h |
| Operational Power: 90-260 V AC using a directional AC power 12/24 VDC |
| Weight: No more than 22 Kg (main backpack unit - with battery, without external antennas) |
| Jammer system |
| Frequency Bands |
Output Power |
| 1. 2400-2500MHz |
50 W |
| 2. 5150-5300MHZ |
30 W |
| 3. 5700-5900MHz |
30 W |
| 4. 1150-1300MHz |
50 W |
| 5. 5700-5900MHz |
30 W |
6. 1570-1620MHz
|
50 W
|
7. 428-438MHz
|
30 W
|
8. 840-1000MHz
|
50 W
|
| Electrical |
| PROTECTION |
VSWR protection
Overheat Protection:
70° cut off operation
65°resume of operation |
| OPERATIONAL POWER |
[90-260] VAC / 24V DC Internal Power Supply |
| COOLING |
Forced Air Cooling |
| CONTROLS & INDICATORS |
On/Off switch & indicator +
control to select bands (each band 1 button) |
| BATTERIES |
Internal Li Ion 20AH |
| Mechanical |
| MODE OF DEPLOYMENT |
Rapid Deployment/Mobile |
| CASING |
Rigidized backpack |
| Environmental |
| OPERATING TEMPERATURE RANGE |
-20˚c to +65˚c |
| RESISTANCE |
IP52 |
| RELATIVE HUMIDITY |
5%-95% non condensing |
|
-----Application-----
Sensitive Areas, Prisons,Oil Refineries,Bases, Protected Areas, Drone Jamming
Application
Law enforcement personnel such as bomb squad , critical mission protection, S.W.A.T, security forces, bomb teams, counter-terrorism units, anti-drug units, border control units, and checkpoint personnel will greatly benefit from the deployment of any portable RF interference solution. They can be more effective in reducing opportunities for offenders to leak information in the enforcement process.
