Handheld 1.2KM long distance anti drone gun anti uav system

Item No.: UAV-80P
Handheld 1.2KM long distance anti drone gun anti uav system
Description
Description

Product Description

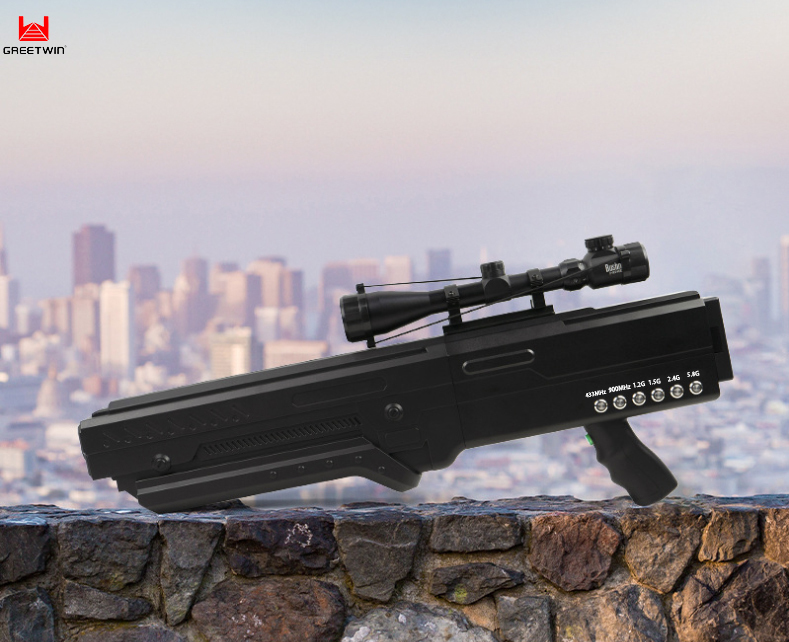

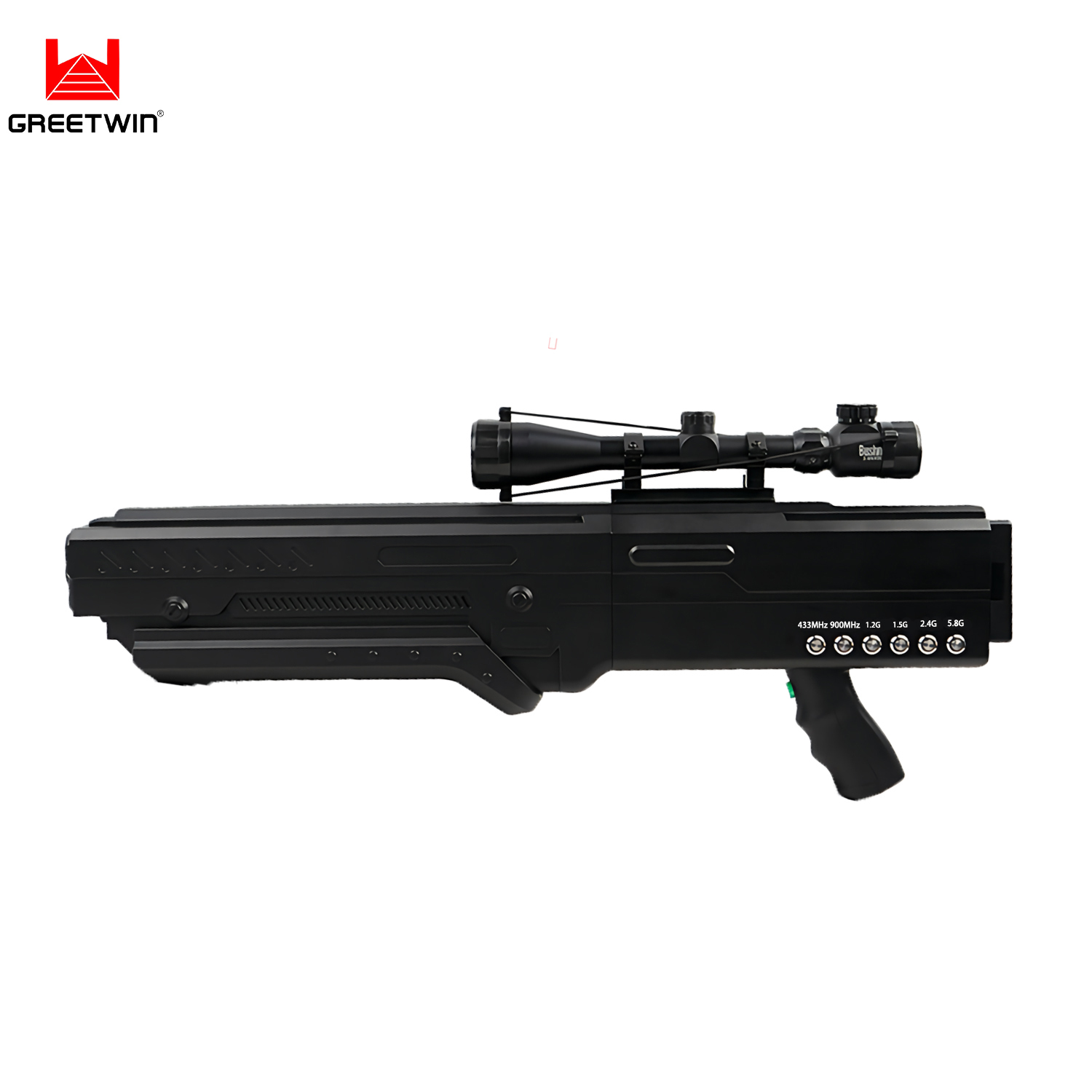

Handheld 1.2KM long range anti drone gun anti uav system

Portable light Uav Drone Jammer, Built-in high gain directional antenna, Built-in 6 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (800-1200m) can be comprehensive and stable uninterrupted shielding of the 433MHz, 1200MHz, 900MHz, GPSL1, WIFI 2.4G, and 5.8G bands in the UAV frequency band.

Product Description

Feature
1.High-gain 10dbi built-in antenna, Jamming range up to 1.2 KM.
2.Working for more than 45 minutes with fully charged.
3. The display can choose to display the power and voltage, and the customer can switch according to their requirements.
4.There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand 6 Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land.

Portable Drone Signal 2km Jammers Anti Drone Gun for Public Security Protection


Parameter

Portable Drone Signal 2km Jammers Anti Drone Gun for Public Security Protection

Channel Working Frequency Output power(±1dBm)
CH1 433MHz 400-470MHz 41 dBm
CH2 1200MHz 1200-1300MHz 41 dBm
CH3 2.4G 2400-2485MHz 45 dBm
CH4 5.8G 5725-5850MHz 45 dBm
CH5 GPSL1, Glonass, BDS 1575.4±2.5MHZ(1.5G-GPS)
1602±5MHZ(1.5G-GLONASS)
1561±2.5MHZ(BDS)
45 dBm
CH6 900MHz  860-930MHz 45 dBm
Power supply mode

 External battery

Battery working time 45 minutes
Working temperature -20ºC to +55ºC
Power consumption 250W
Weight 5.0KG, Packing Weight:11.5KG

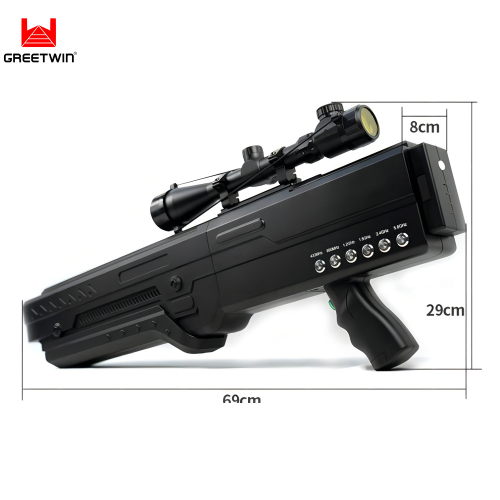

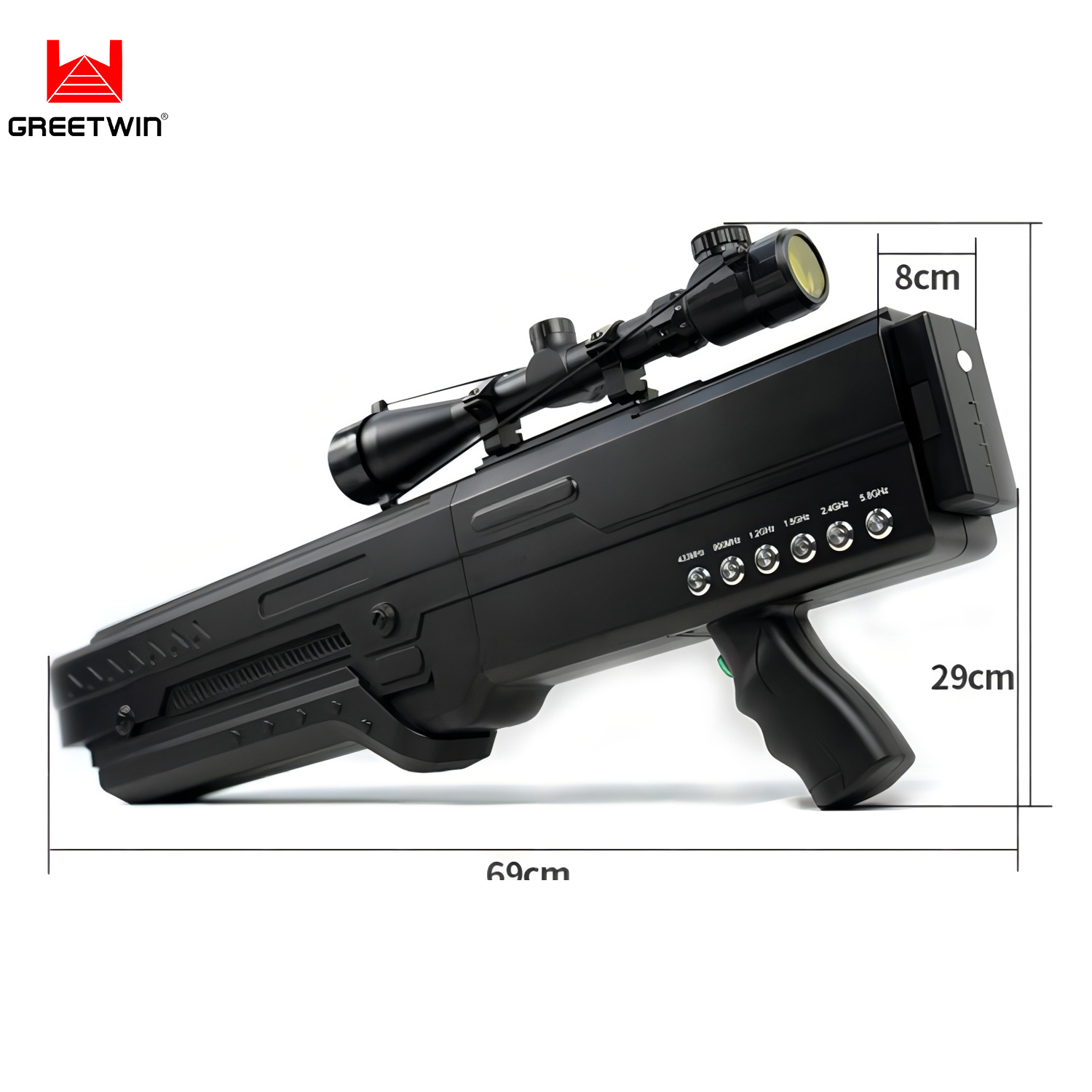

Size 680X300X70mm
Panel Antenna 16dBi Gain
Total output power 120W
