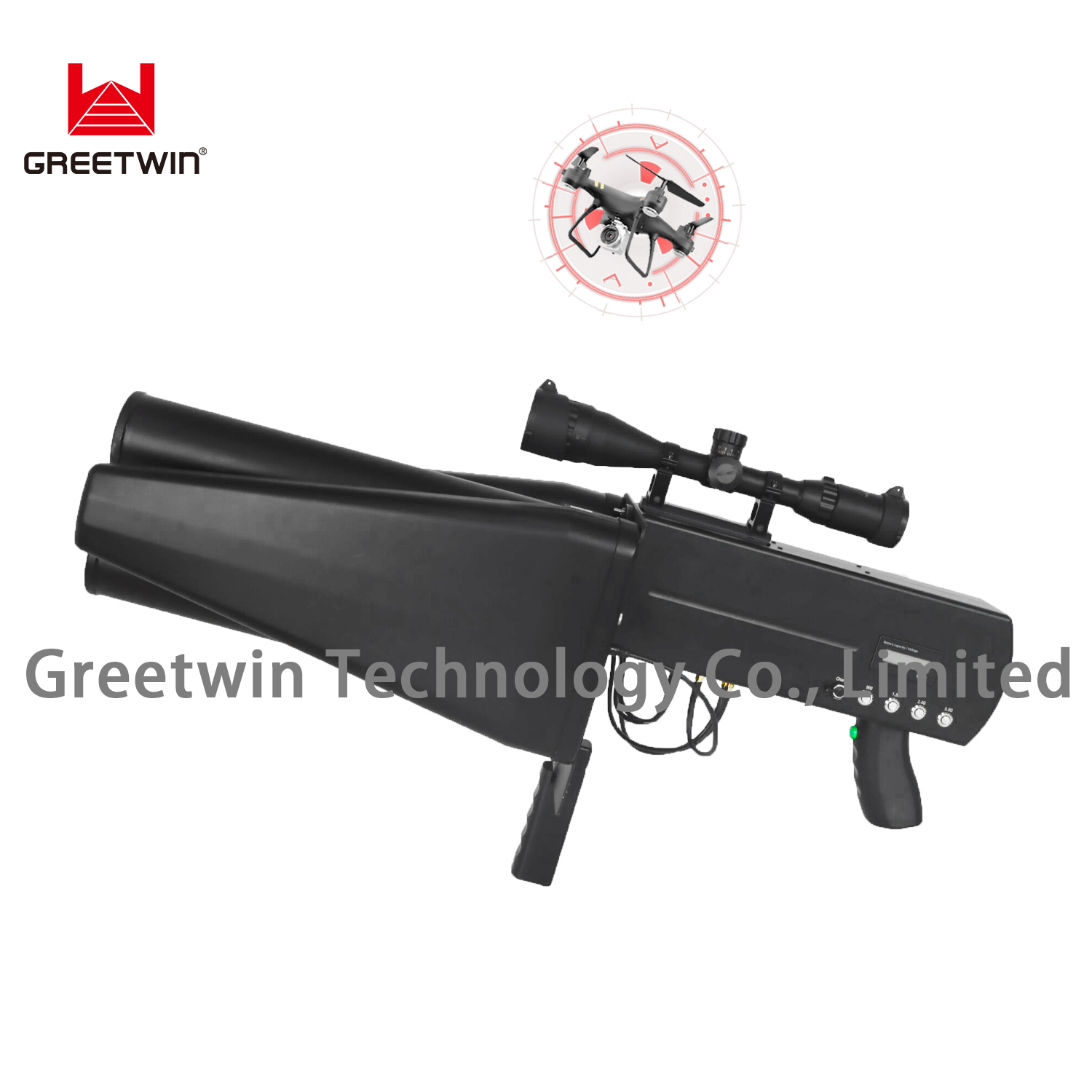

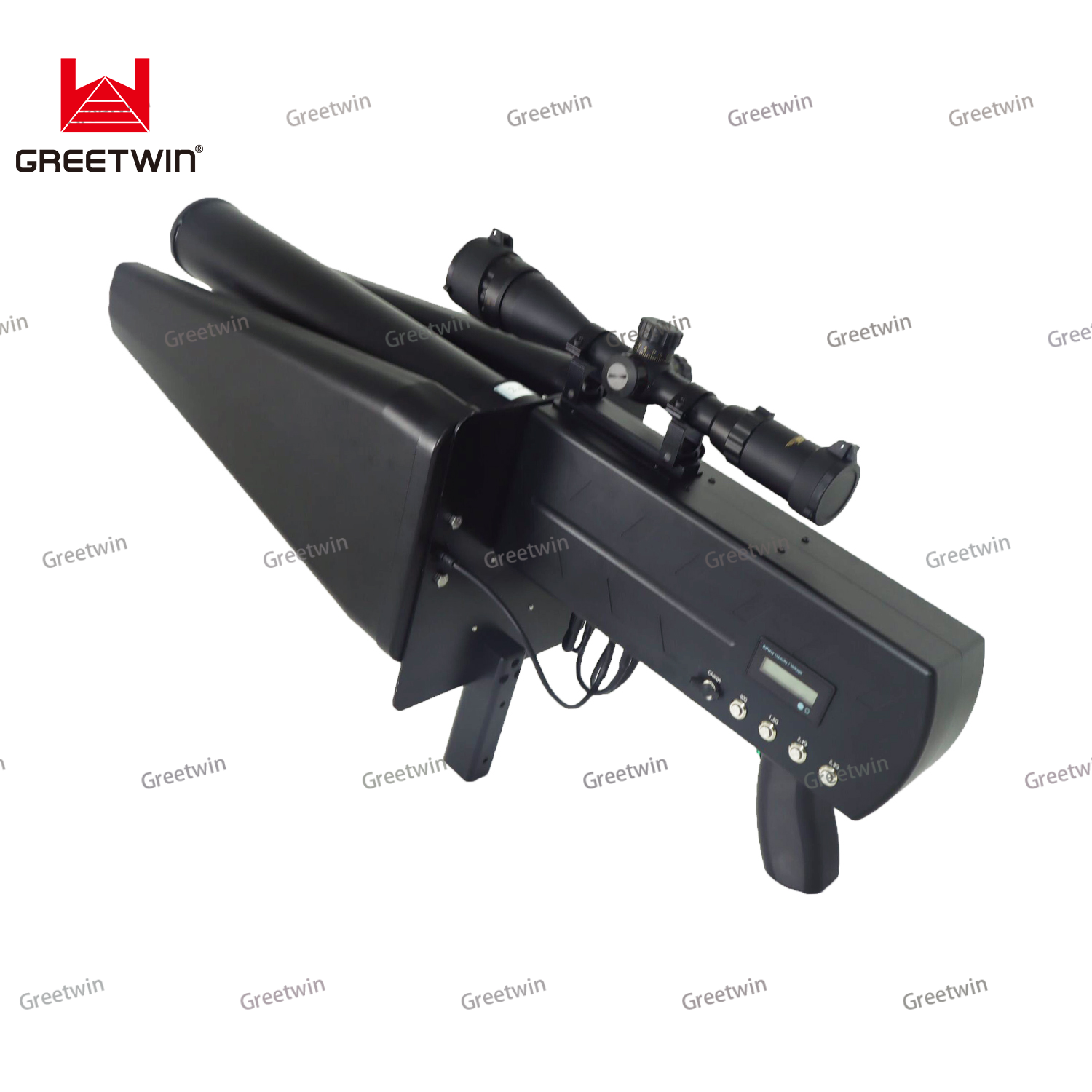

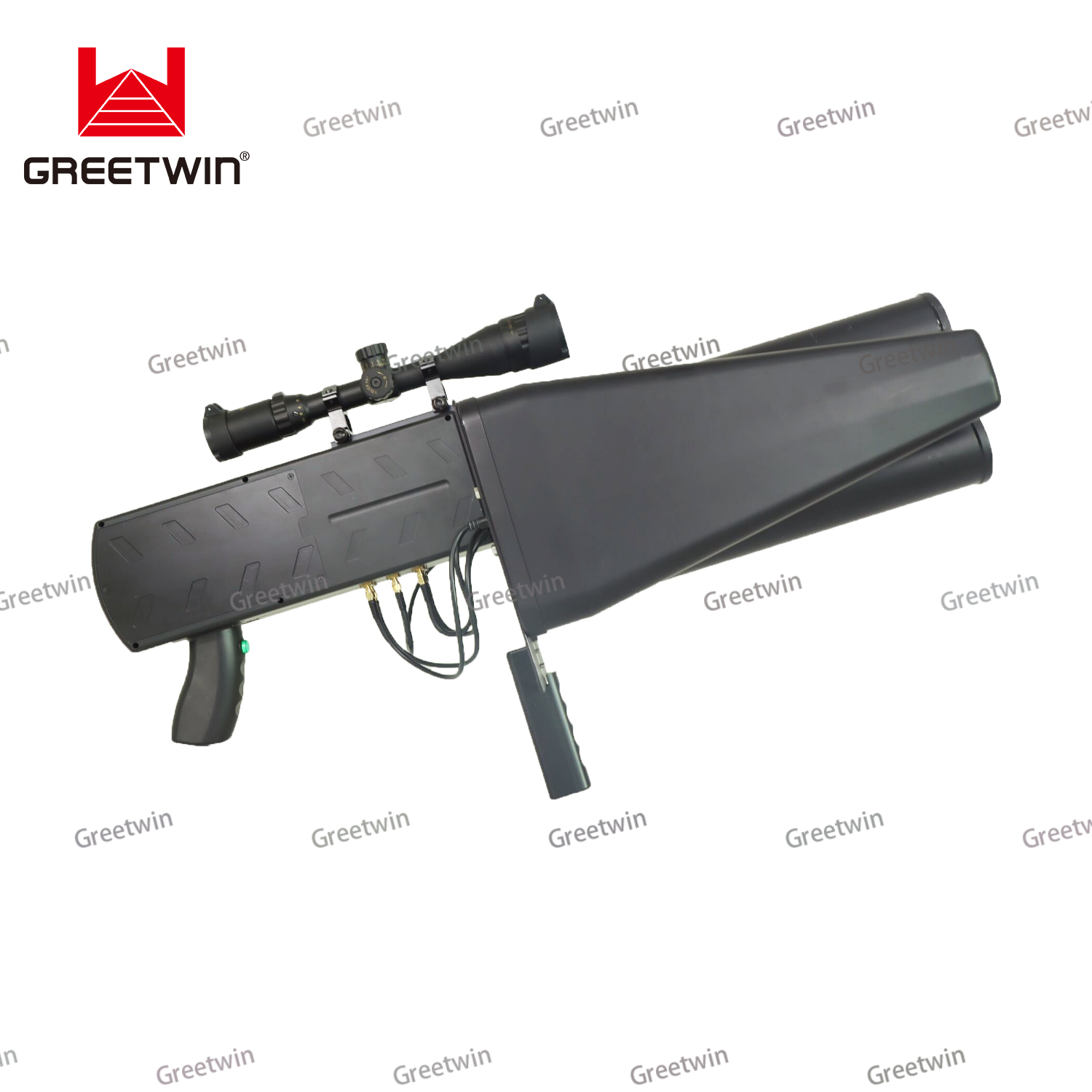

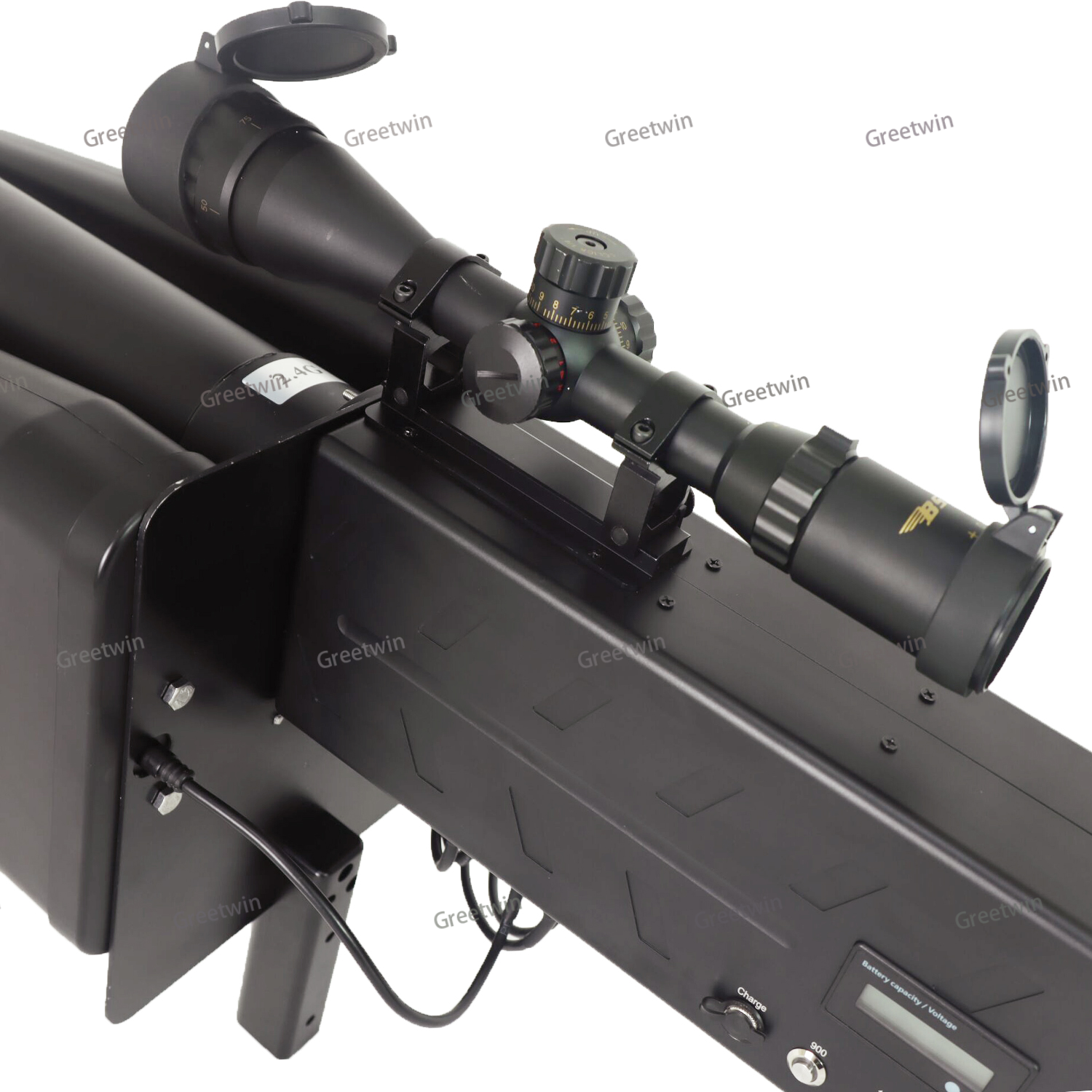

Handheld Military Anti drone gun 2 KM Drone Signal Jamming Custom 5-8 band drone jammer
Portable light Uav Drone Jammer, Built-in high gain directional antenna, Built-in 6 sets of independently operated RF working unit.
can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle.
Coverage (1500-2000m) can be comprehensive and stable uninterrupted shielding of the 433MHz, 1200MHz, 900MHz, GPSL1, WIFI 2.4G, and 5.8G bands in the UAV frequency band.
Feature
1.High-gain 10dbi built-in antenna, Jamming range up to 2 KM.
2.Working for more than 45 minutes with fully charged.
3. The display can choose to display the power and voltage, and the customer can switch according to their requirements.
4.There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.
5.Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land.
Parameter
Channel | Working Frequency | Output power(±1dBm) | |
CH1 | 2.4G | 2400-2500MHz | 46 dBm (40W) |
CH2 | 5.2G | 5150-5300MHz | 45 dBm (30W) |
CH3 | 5.8G | 5700-5900MHz | 46 dBm (40W) |
CH4 | 1.5G | 1560-1620MHz | 45 dBm (30W) |
CH5 |
1.2G |
1150-1300MHz | 41 dBm (10W) |
CH6 | 900MHz | 840-960MHz | 45 dBm(30W) |
Power supply mode |
Inside battery: 24V, 10Ah; |
||
Battery working time | 40-50 minutes | ||
Working temperature | -20ºC to +55ºC | ||
Power consumption | 360W | ||
Weight | 7.3KG, Packing Weight:22KG | ||
Size | 830X370X240mm | ||
Panel Antenna | 18dBi Gain | ||
Total output power | 180W |
