Multi Bands Cooling System GSM, WIFI, Adjustable High Power Phone Signal Jammer

Description
Description

   Multi Bands Cooling System GSM, WIFI, Adjustable High Power Phone Signal Jammer





Model: GW-VIP JAM8



Prison Jammer Description:

GW-VIP JAM8 is a high power prison and military type cellular jammer. It is used to block mobile signals in a large area. It is used in military areas to ensure that no confident information is leaked by any spy of the enemy and in prisons it is used for security reason. The jammer is very powerful and can block mobile phone signal in large areas. It is loaded with features like worldwide network frequency system and output power adjustable design which makes it user friendly and convenient to use.





The jammer GW-VIP JAM8 can block: (optional)AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.Shielding distance up to 20-150 meters, depend on the signal strength in the given area.



Prison Jammer Advantages:

1.Max 65watts total RF output power.

2.Good smart cooling system inside

3. Each bands can adjust RF output power

4. Have switch to turn on or off each bands without influencing the other bands operation

5. Working time: not-stop working

6. VSWR circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection.

7. High Efficiency output power, long jamming distance.

8.The jammer GW-VIP JAM8 can customize 4 bands, 5 bands, 6 bands.



Being familiar immediately

Now let us introduce this mobile signal jammer to you ,and make you better understand about the positions of all the buttons, function of accessories and other hardware.

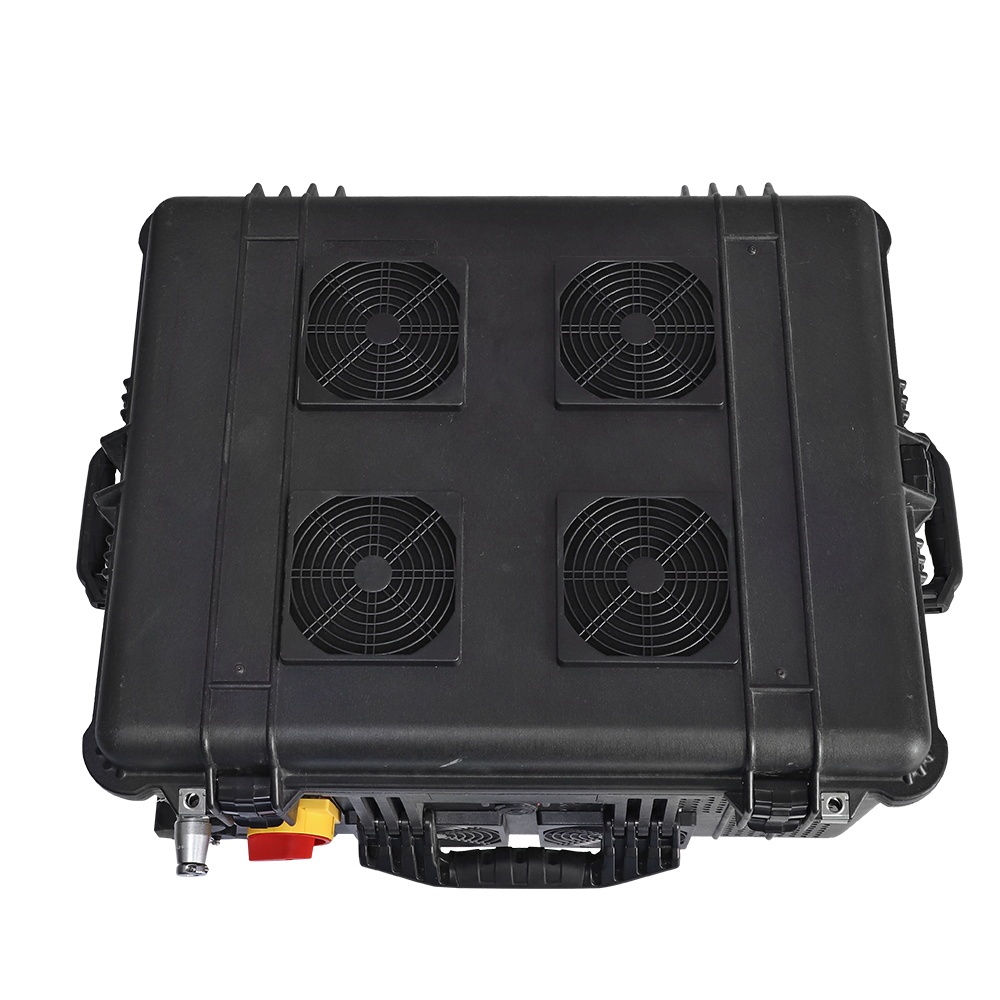

Top view



























Prison Jammer Technique specifications

Output interface Shield band of frequency RF output power Output power/channel
CH1 2500-2570 MHZ 38.5 dBm 8 dBm/30KHz(min)
CH2 1805-1920 MHz 39 dBm 8 dBm/30KHz(min)
CH3 925-960 MHZ 42.3 dBm 10 dBm/30KHz(min)
CH4 2400-2500 MHz 38.4 dBm 7 dBm/30KHz(min)
CH5 2110-2170 MHZ 38.5 dBm 7 dBm/30KHz(min)
CH6 790-826 MHz 39.2 dBm 8 dBm/30KHz(min)
CH7 2620-2690 MHZ 39.2 dBm 8 dBm/30KHz(min)
CH8 851-894 MHz 40.8 dBm 9 dBm/30KHz(min)

Power supply: AC220V

Jamming area: up to 150m @ according to signal density of mobile network

Weight: 10Kg

Size(length × wind × high):300×200×150mm

Packing Size: 440×540×290mm

Output Power: 65W

Power consumption: 200W

Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree



Connect

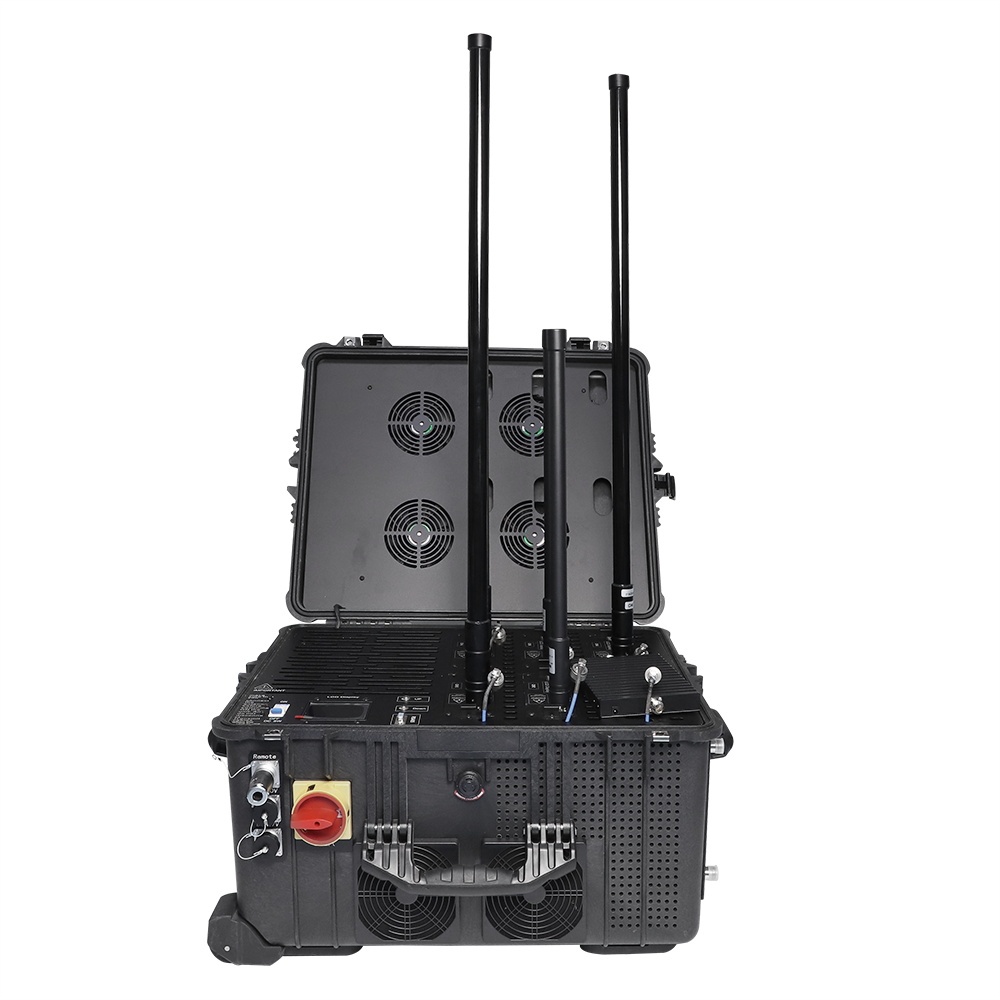

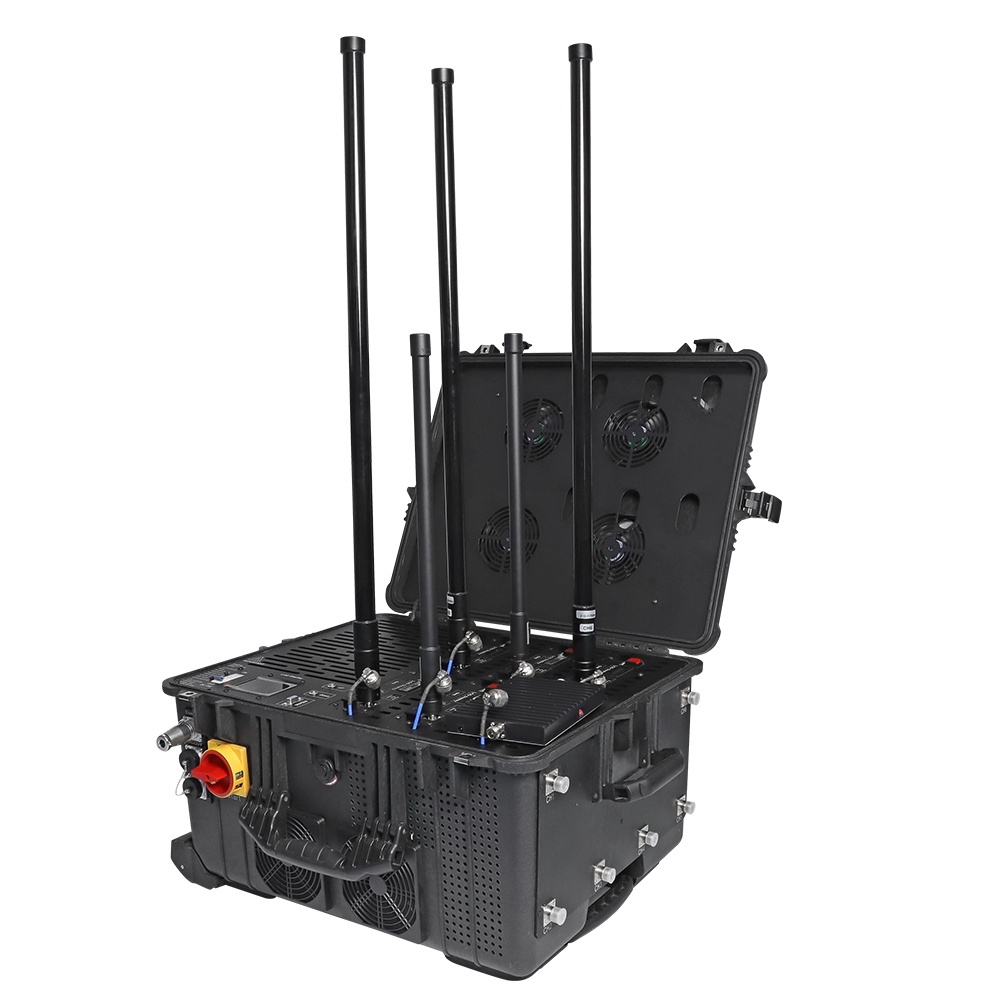

With directional panel antenna,(4G/GSM/3G/WIFI)

Power supply interface (AC220V IN),





Switch on your jammer

Note:(Switching on is not allowed before the all antenna have been linked, otherwise the equipment is easy to be damaged.)

install all antenna at first.



Input the 220V AC power, Turn on the “RED Switch”.

Press the on/off green button.



Turn off your jammer

Turn off the “RED Switch”.

Move away 220V AC power from the main machine .

The jammer is out of work.



Question and answer

Does jammer interfere the other electronic equipment to work in normal condition?



No. Because the electromagnetic signal sent by jammer are totally used in the band that regulated by government and just have interception effect to cell phone communication.



Is jammer harmful to the human body and cell phone?



Please do not need to worry about it. The intensity of electromagnetic signal sent by jammer is in compliance with the national standard of environmental electromagnetic wave health. The signal sent by jammer is relatively small and no harmful to human body according to the testing result. Meanwhile, this device just damage the receiving condition to the cell phone and makes the normal connection between cell phone and base station impossible. Therefore, no damage will occur on cell phone itself.



The shell of jammer will become hot after working for some times. Does the long working time will damage the machine itself?



It is very normal. When designing, we are thinking of taking use of the conductivity of metal shell to help the heat sinking during our designation. By this way, the machine can be kept in good working condition for long time.



Prison Jammer Aplication:

Prisons, Military, School, detention house or Government buildings, meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains etc.
