1. Overview

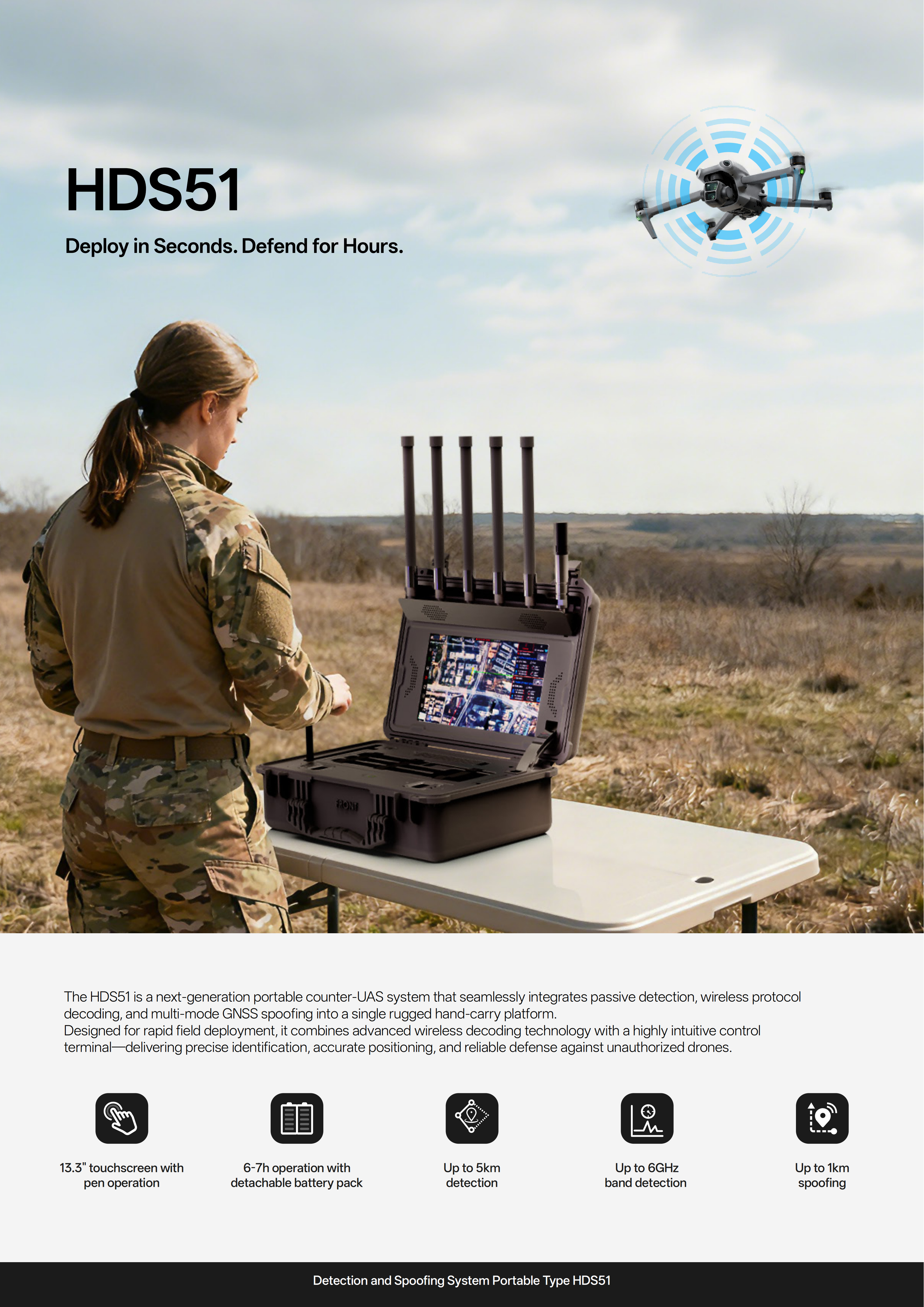

HDS51 is a mobile, integrated drone detection and spoofing defense system. It is equipped with core technologies for radio protocol cracking and multi-mode navigation spoofing, enabling precise identification and accurate positioning, as well as omnidirectional defense against drones within protected zones. This device features an integrated enclosure design with a built-in touchscreen terminal, supporting standalone operation and rapid deployment in complex environments.

Precise Identification: Based on CRPC technology, accurately identify different drones of the same brand, model, and frequency band, and label the drone body ID

Multi-mode Spoofing: Support simulating multi-standard and multi-frequency navigation satellites, generating effective navigation simulation signals, and improving the success rate of deception

Intelligent Spoofing: Upon detecting an intruding drone, the system proactively emits signals to carry out spoofing, forced landings, and expulsion, thereby safeguarding the security of the defense zone.

Black and Whitelist: One-click to mark the whitelist, keeping the white-listed drones free from interference

Strong Usability: Adopting a lightweight design, supporting individual portability, rapid deployment, no need for complex installation and configuration, and rich application scenarios

New Breakthrough Design:

Foldable antenna interface: flexible storage and a sturdy, durable design.

Plug-in replaceable battery: quick replacement and a worry-free battery life.

Large user field of view: screen size increased by 20% for a fully upgraded experience.

Integrated Drone Security for Specialized Operators
The Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System serves critical security personnel, facility managers, and defense teams requiring comprehensive aerial threat management. This system consolidates detection and spoofing functions into a single portable device, enabling expedited threat assessment and neutralization without dependency on external assets. Its standalone touchscreen control and IP66-rated chassis allow deployment across diverse tactical environments, facilitating rapid response for security teams operating in both urban and remote zones. By integrating multi-band capabilities, the device ensures effective aerial domain awareness focusing on drones managed by regulatory bodies and private operators alike.

Advanced Frequency Coverage and Spoofing Capabilities
Engineered for precision, the Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System operates across an extensive detection frequency range from 100MHz to 6GHz. It features protocol parsing for remote ID cracking, supporting identification at operational ranges up to 5 kilometers. Spoofing functionalities cover up to 1 kilometer with multi-mode navigation signal simulation, enabling forced drone landings and evictions through intelligent GPS interference. Power management includes a 28.8V/18Ah lithium battery or AC supply with six to seven hours runtime, while the integrated 13.3-inch TFT LCD facilitates situational awareness. These measurable specifications empower users with reliable real-time drone control and countermeasure deployment.

Critical Applications in Security and Infrastructure Protection
This All-in-One System is designed to safeguard sensitive sites such as critical infrastructure, event venues, and border perimeters against unauthorized drone incursions. Its portability makes it suitable for rapid deployment in emergency operations and temporary security scenarios, ensuring compliance with regulatory no-fly zone mandates. The device’s autonomy supports operations in areas lacking external infrastructure, enhancing threat detection and response workflows for security teams. It also serves as a training platform for counter-drone tactics and signal spoofing validation, contributing practical value for defense contractors and governmental agencies tasked with aerial security.


Product Advantages

Integrated Design Enhances Rapid Field Deployment
The structural advantage of the Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System lies in its compact enclosure integrating detection hardware, an embedded touchscreen terminal, and foldable antennas into a single ruggedized unit. With an IP66 rating, the system resists dust, water, and harsh environmental conditions typical of field operations. Modular battery options and replaceable cells facilitate continuous mission readiness, while the lightweight design under 14kg ensures ease of transport by security forces. This ergonomic configuration reduces setup time and logistical burden, allowing deployment at remote or otherwise constrained locations without compromising system integrity or operational reliability.

Robust Performance and Intuitive Control Interface
Performance benefits include extended detection and spoofing ranges validated across multiple frequency bands (100MHz to 6GHz) critical for contemporary drone communication protocols. The All-in-One System features customizable transmitting power up to 10mW, maximizing interference effectiveness while maintaining compliance with regulatory limits. Its user-friendly graphical interface on a high-definition 13.3-inch screen ensures operators maintain clear situational awareness and can utilize Black and White-list drone management with precision. These design elements optimize mission efficiency, minimize operator training requirements, and provide scalable solutions adaptable to varying security operational demands.

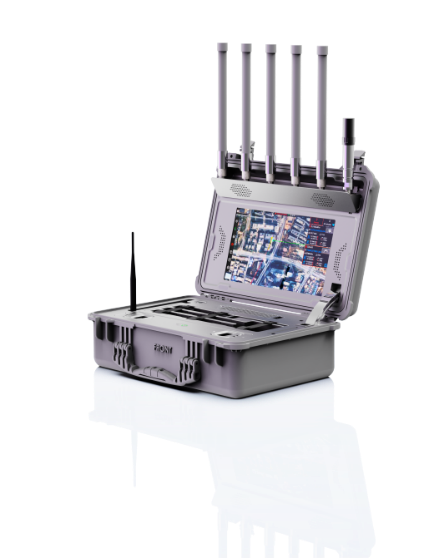

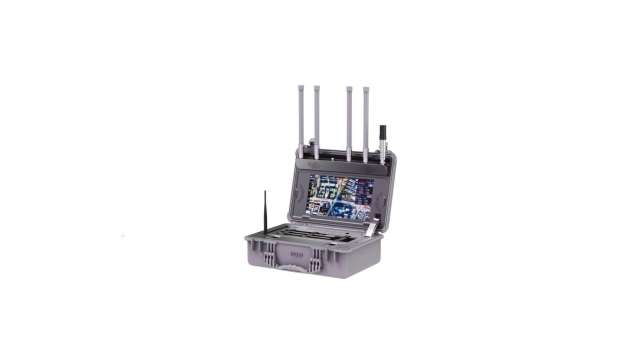

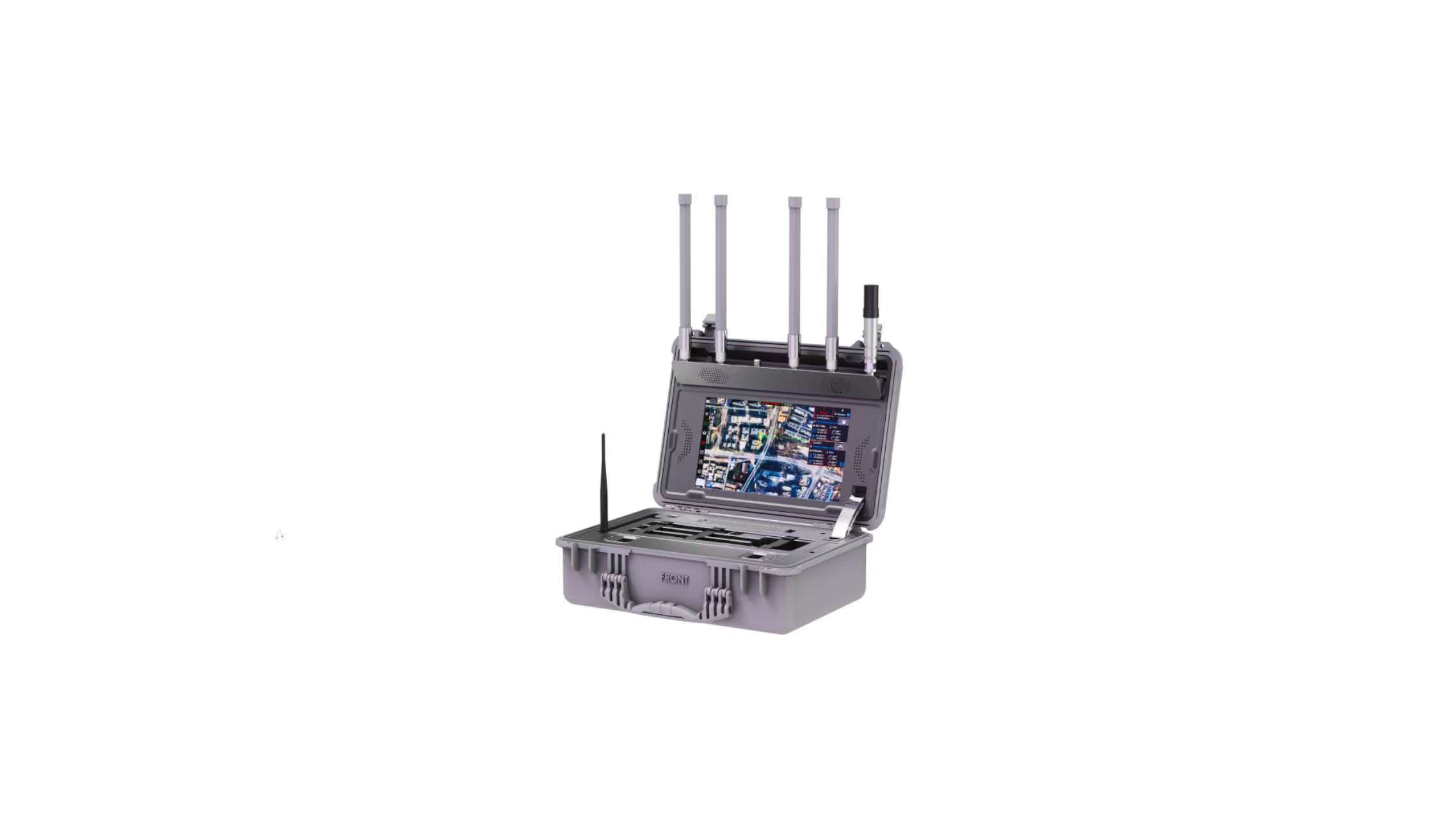

2.1 Equipment View

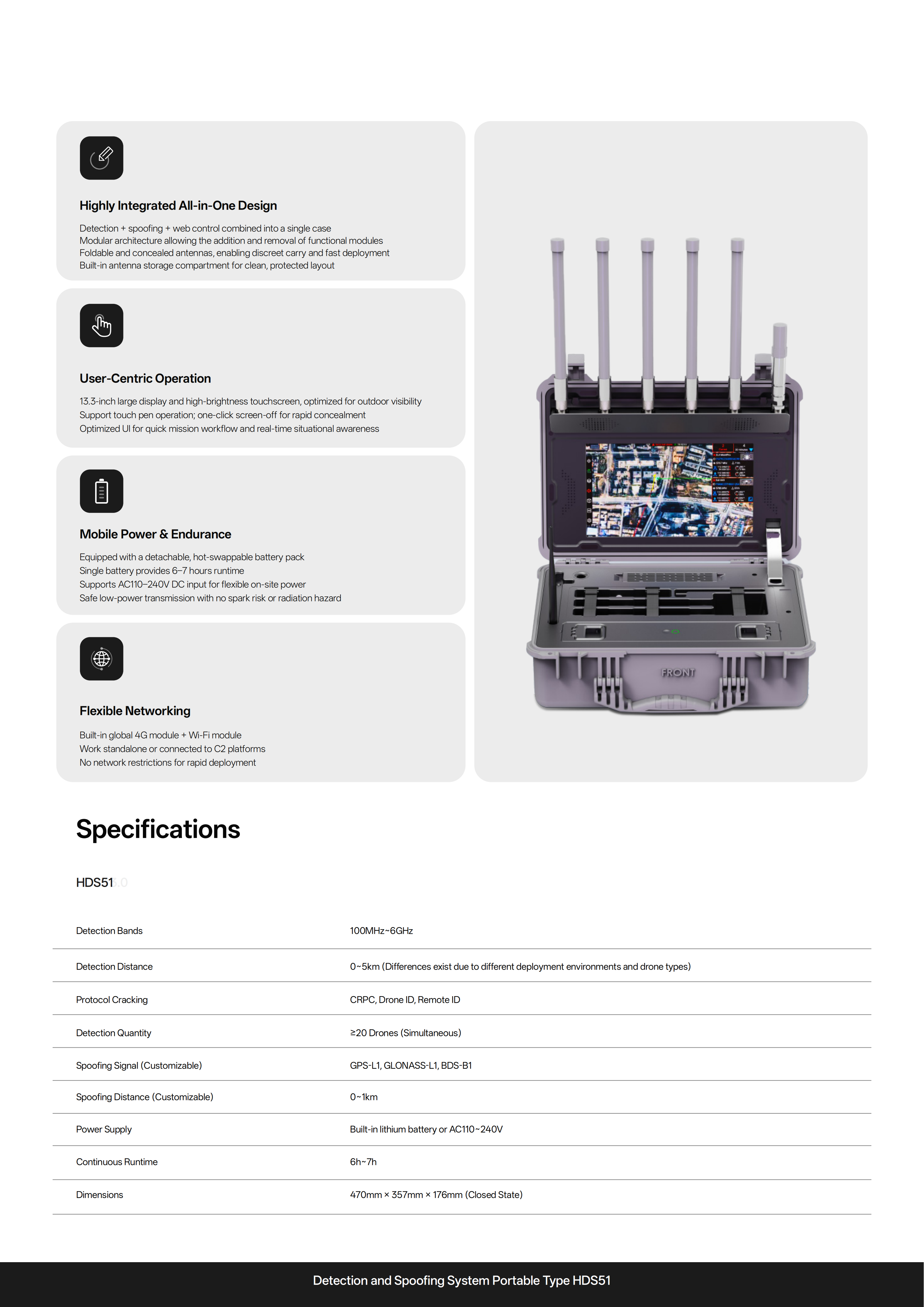

2.3 Technical Specifications

FAQ

What is the detection and spoofing coverage of the Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System?
The Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System offers detection capabilities up to 5 km across 100MHz to 6GHz frequencies. Spoofing functions operate effectively within a range of up to 1 km, ensuring comprehensive monitoring and countermeasures for protected zones.

Can this system be customized to fit specific operational requirements?
Yes, Shenzhen Greetwin Telecom provides end-to-end customization from core components to system integration. The Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System supports adjustable transmitting power and modular antenna interfaces, allowing clients to tailor the solution to their security needs.

How is the Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System powered and maintained during field operations?
This system offers flexible power options, including a built-in lithium battery with 28.8V/18Ah capacity or AC110~240V supply. The battery is replaceable for quick field swaps, enabling continuous runtime of 6 to 7 hours, which ensures operational reliability in remote or challenging environments.

What installation or setup procedures are required for deployment on-site?
Designed for rapid deployment, the Portable 100MHz~6GHz 1-5KM Drone Detection and GPS Spoofing All-in-One System features an integrated enclosure with a built-in touchscreen terminal. It supports standalone operation with foldable antennas and requires minimal setup, making it efficient for use in varied on-site security scenarios.
